JIM

- Jointed Inclinable Multirotor concept design

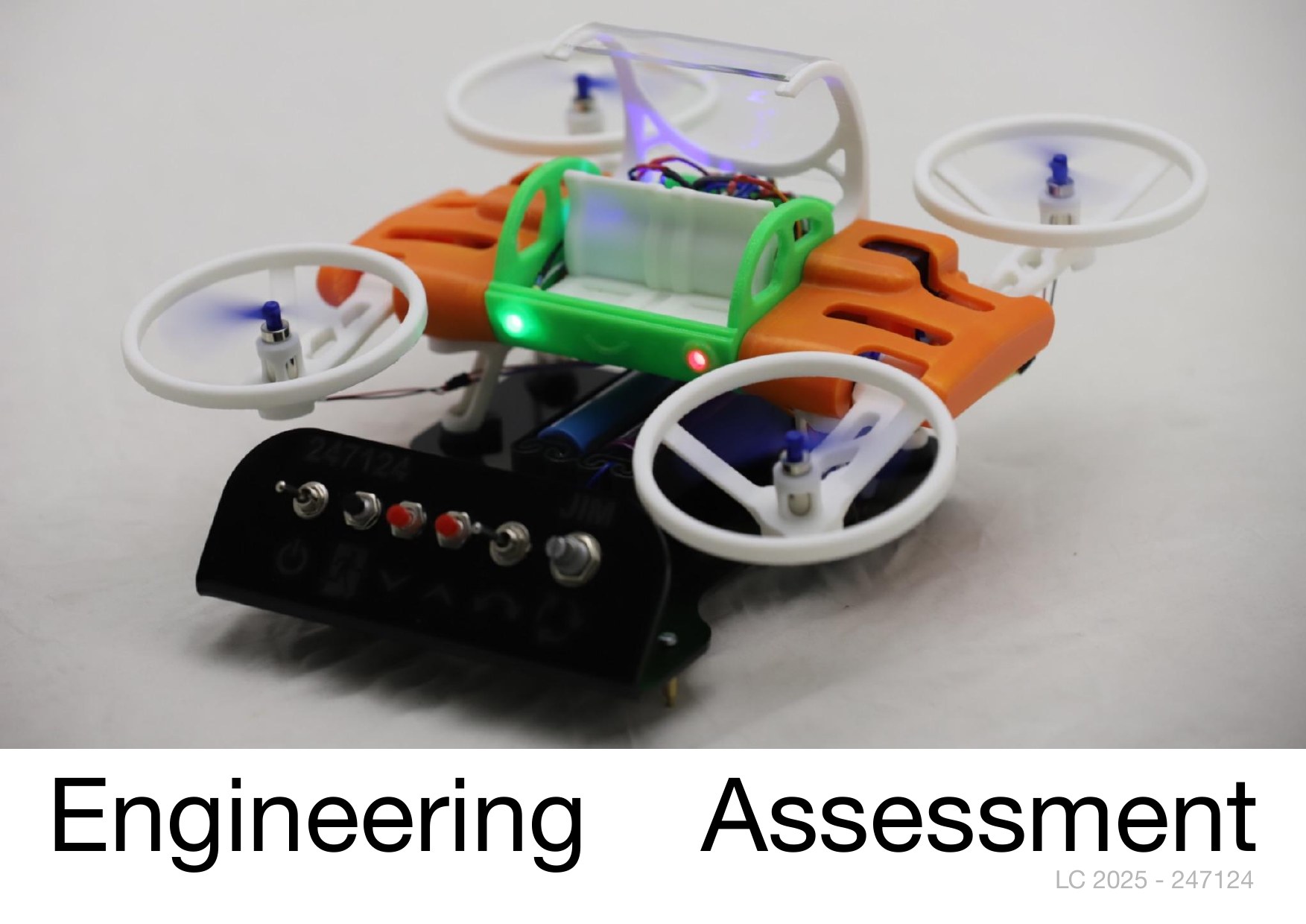

JIM engineering assessment, page 1

skip to the build ↓

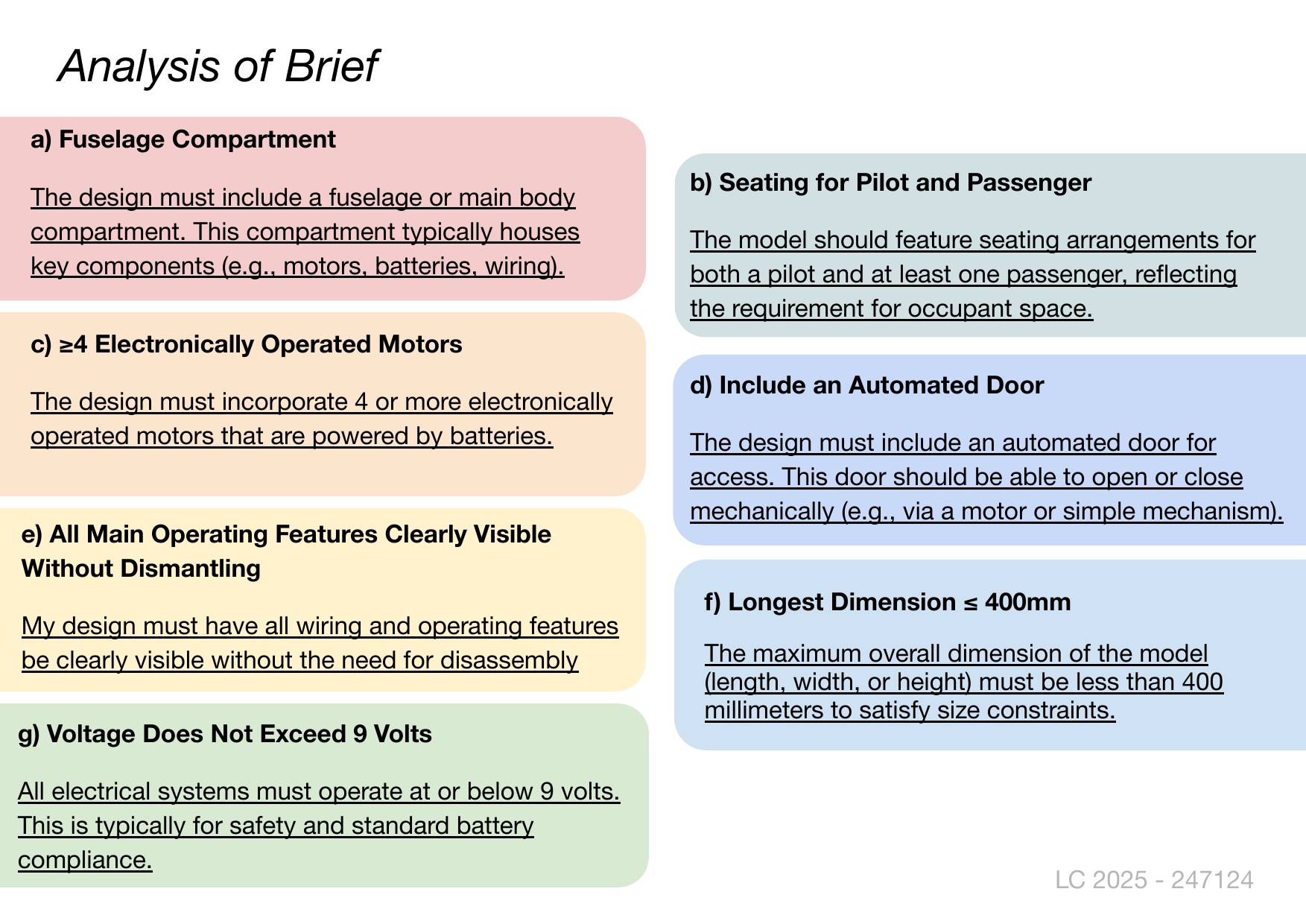

JIM engineering assessment, page 2

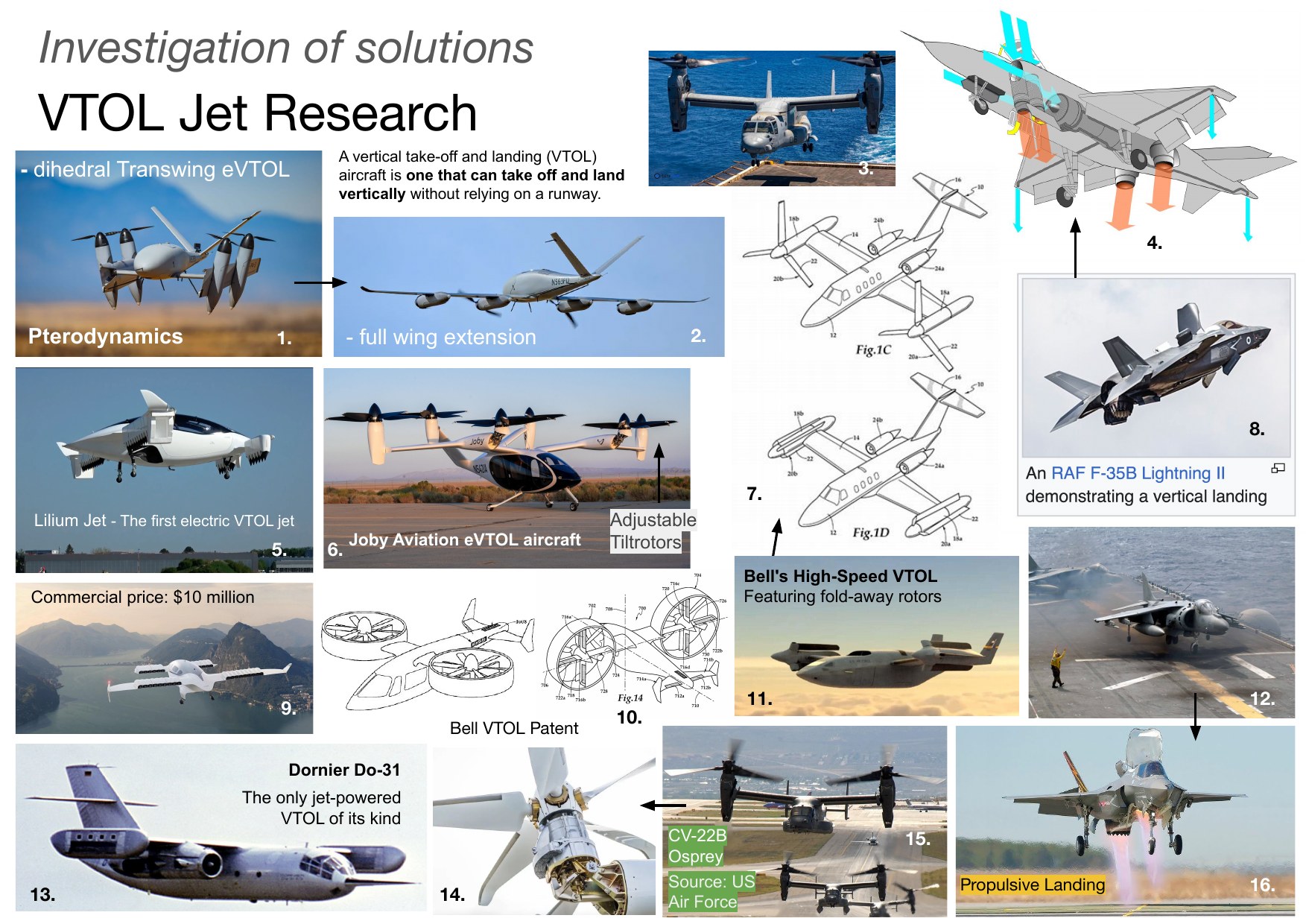

JIM engineering assessment, page 3

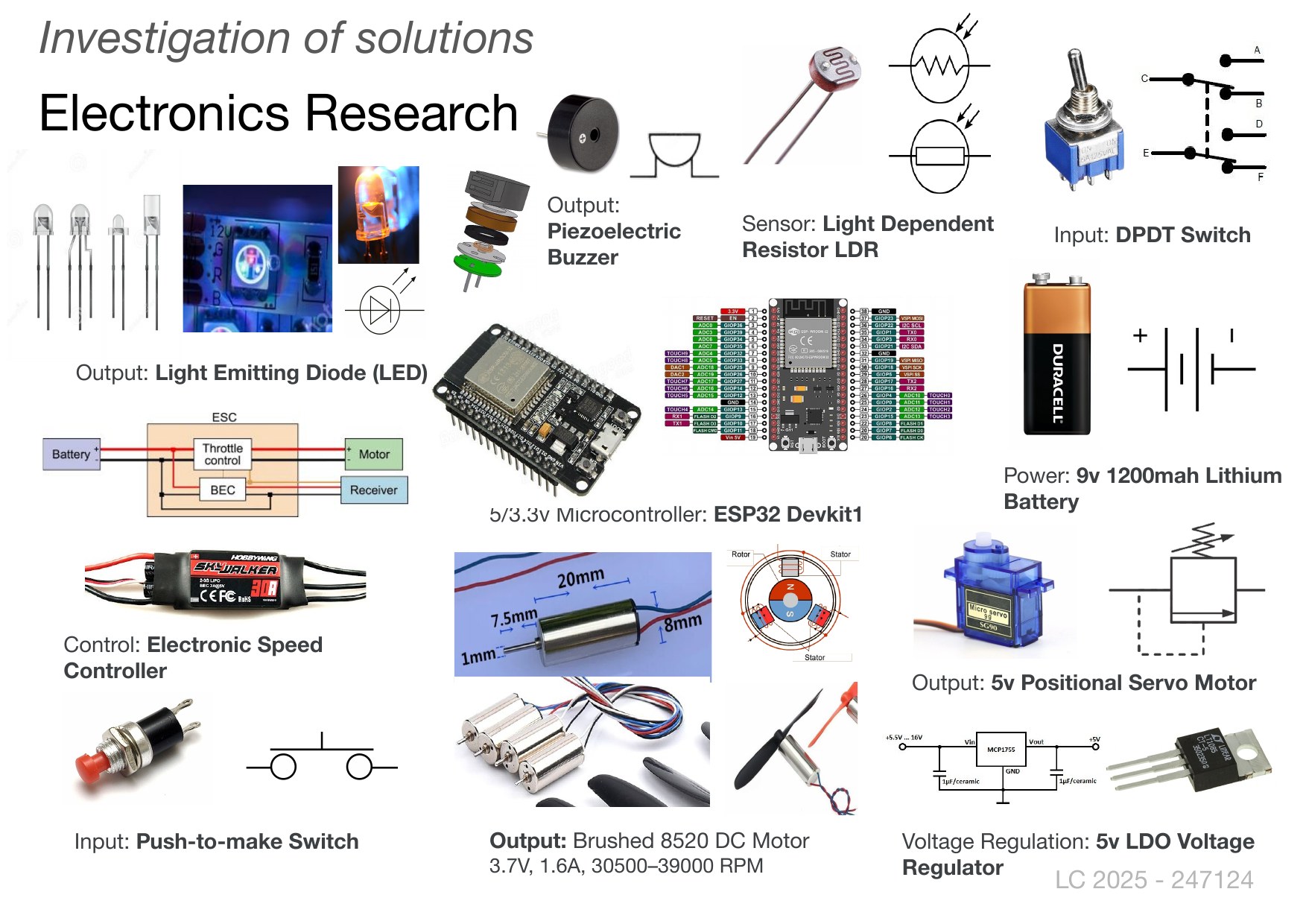

JIM engineering assessment, page 4

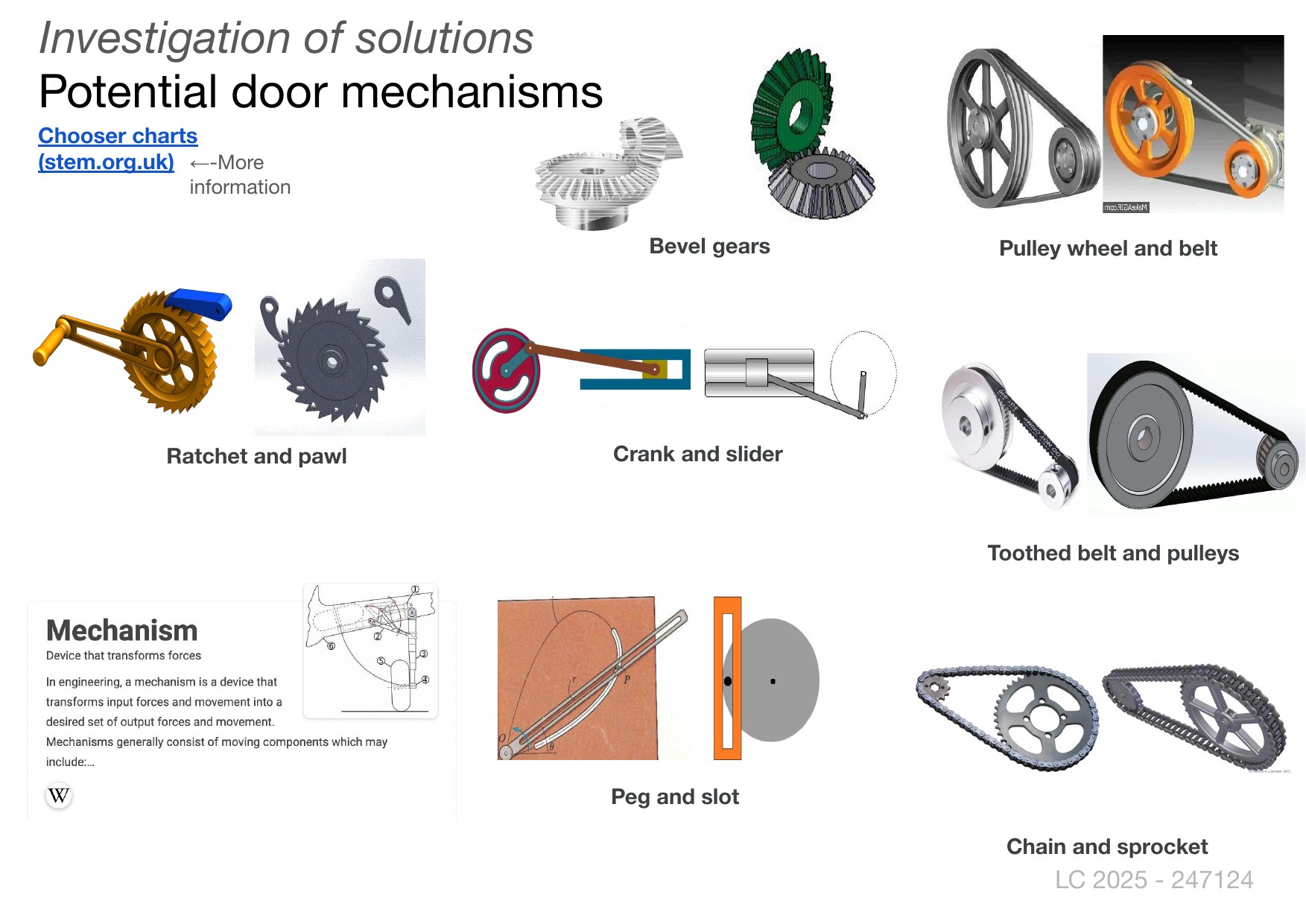

JIM engineering assessment, page 5

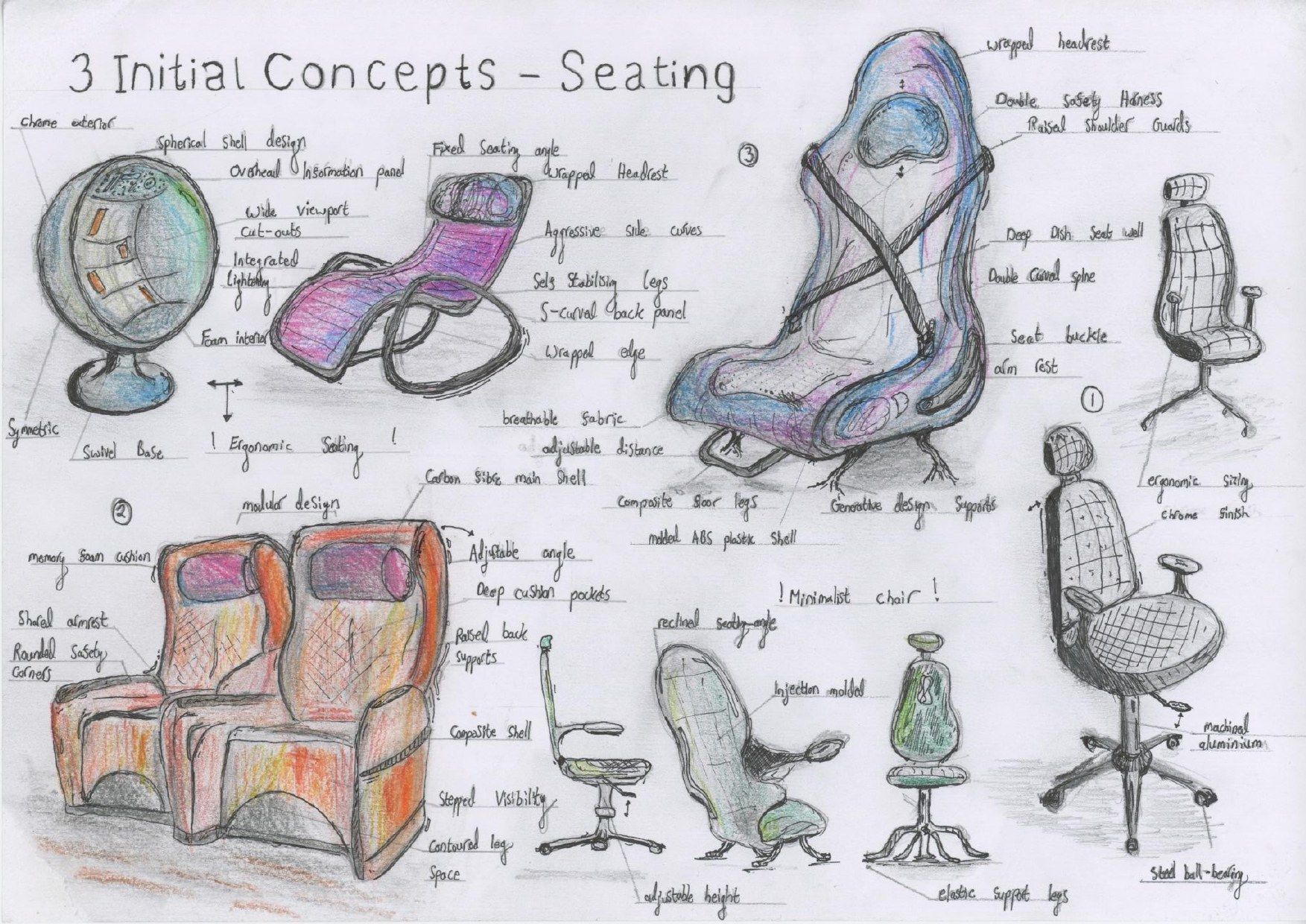

JIM engineering assessment, page 6

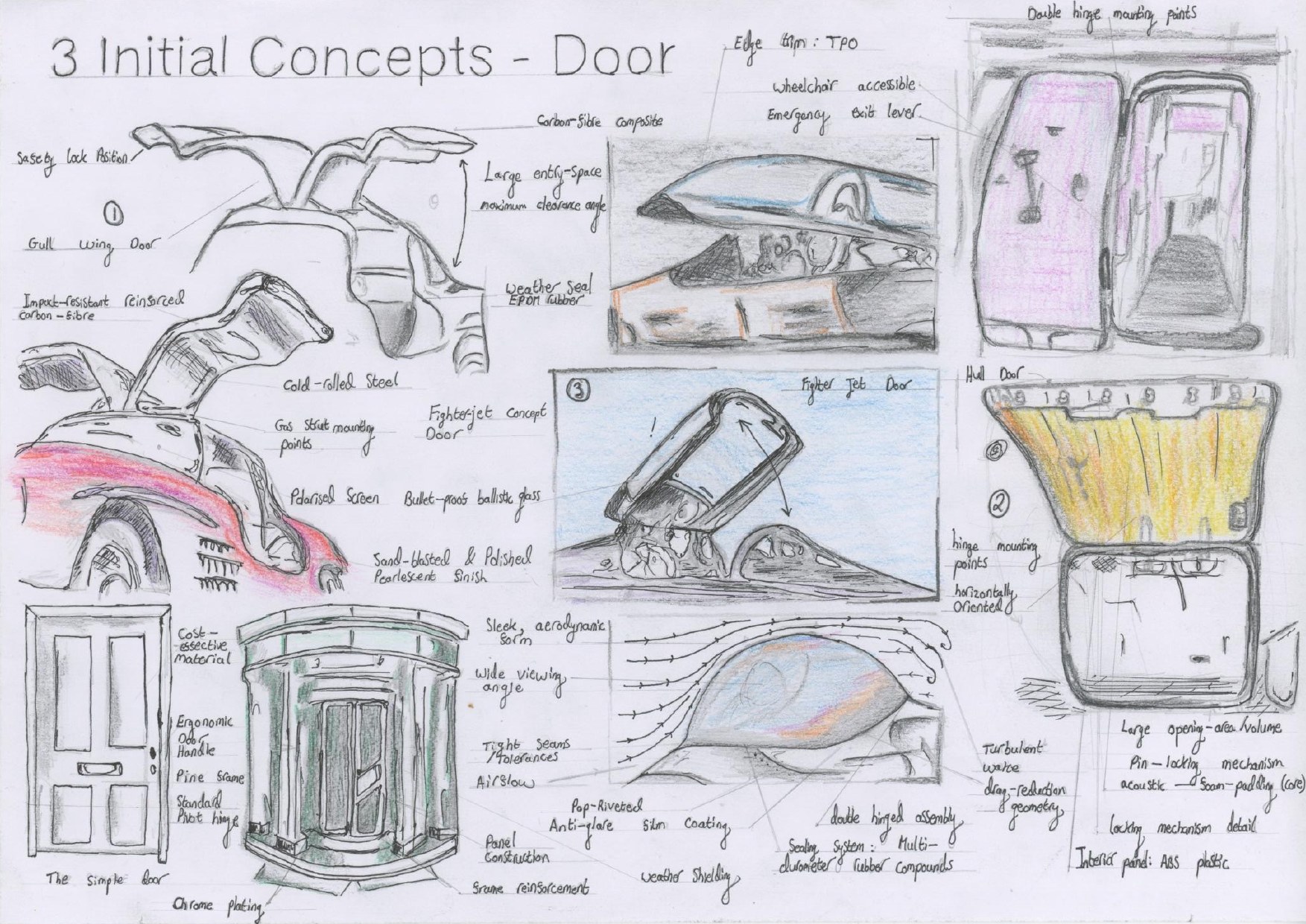

JIM engineering assessment, page 7

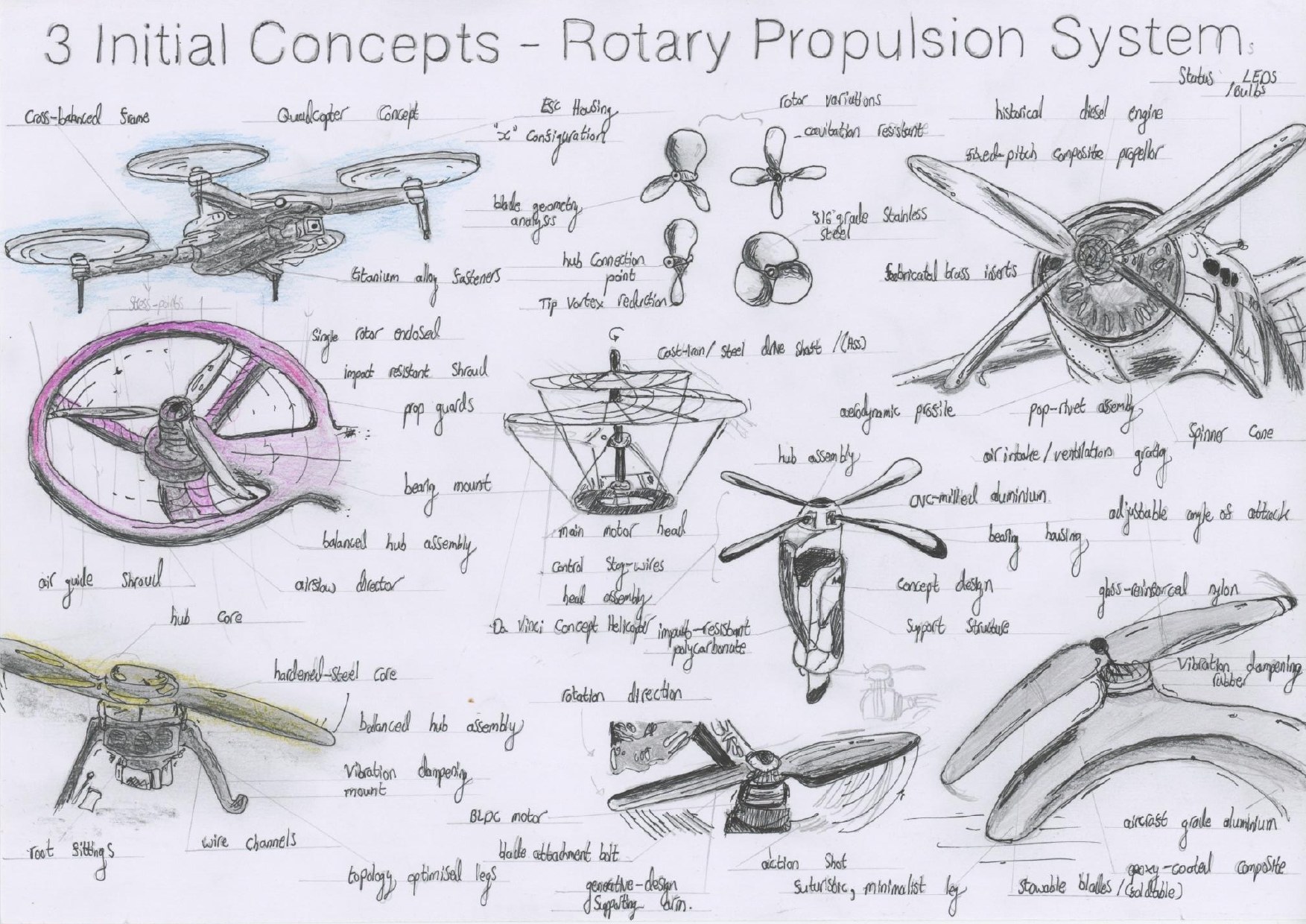

JIM engineering assessment, page 8

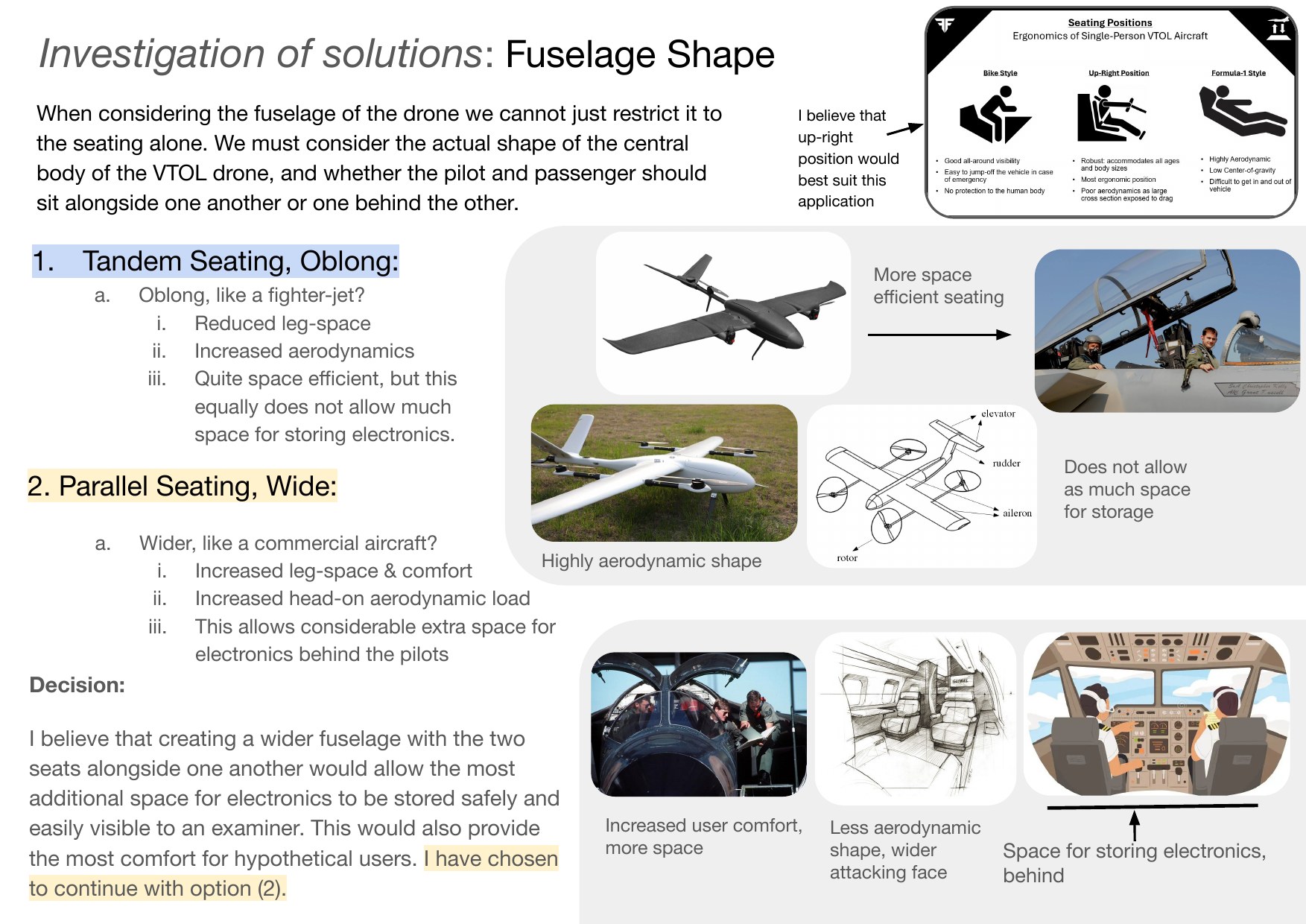

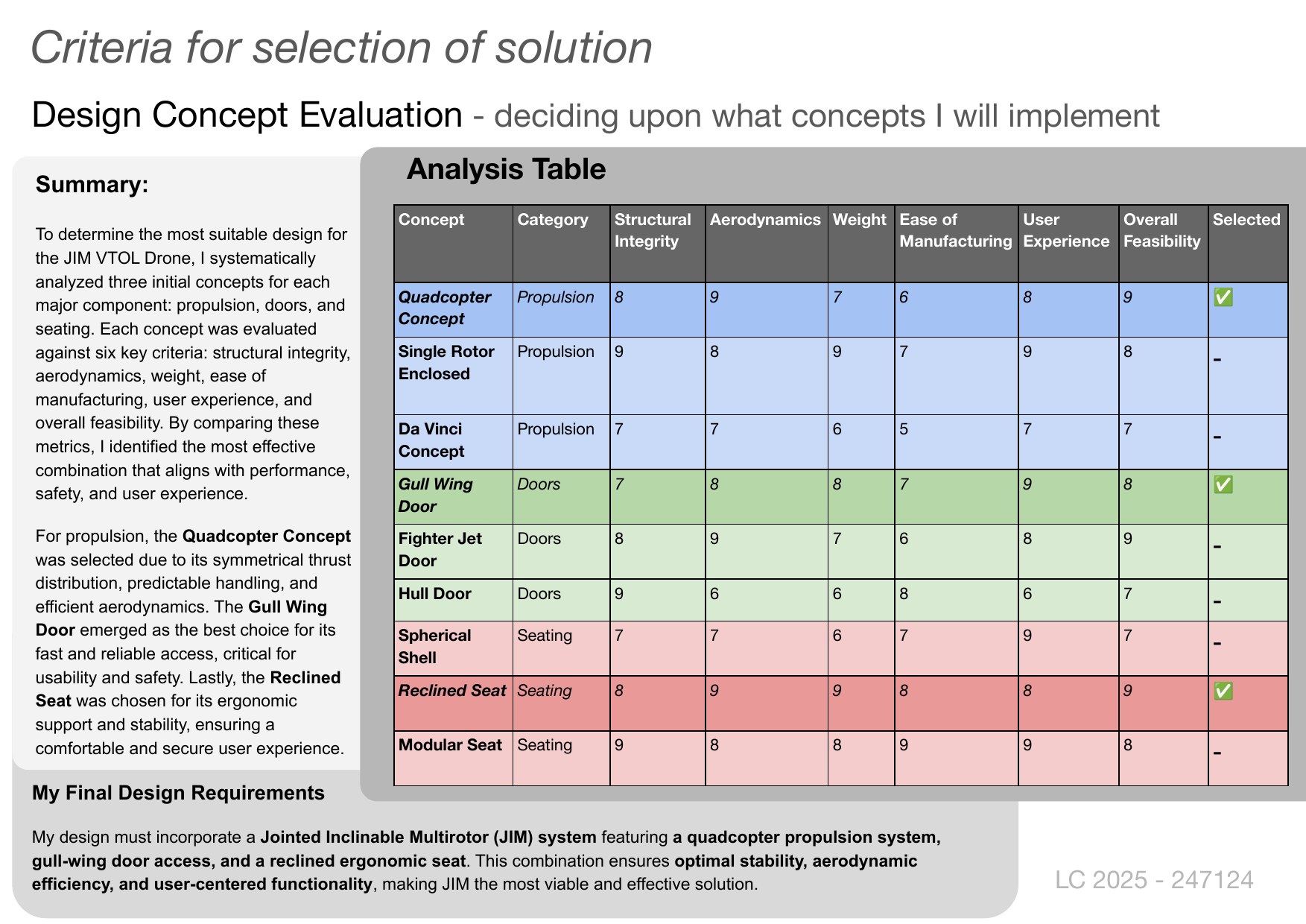

JIM engineering assessment, page 9
JIM engineering assessment, page 10

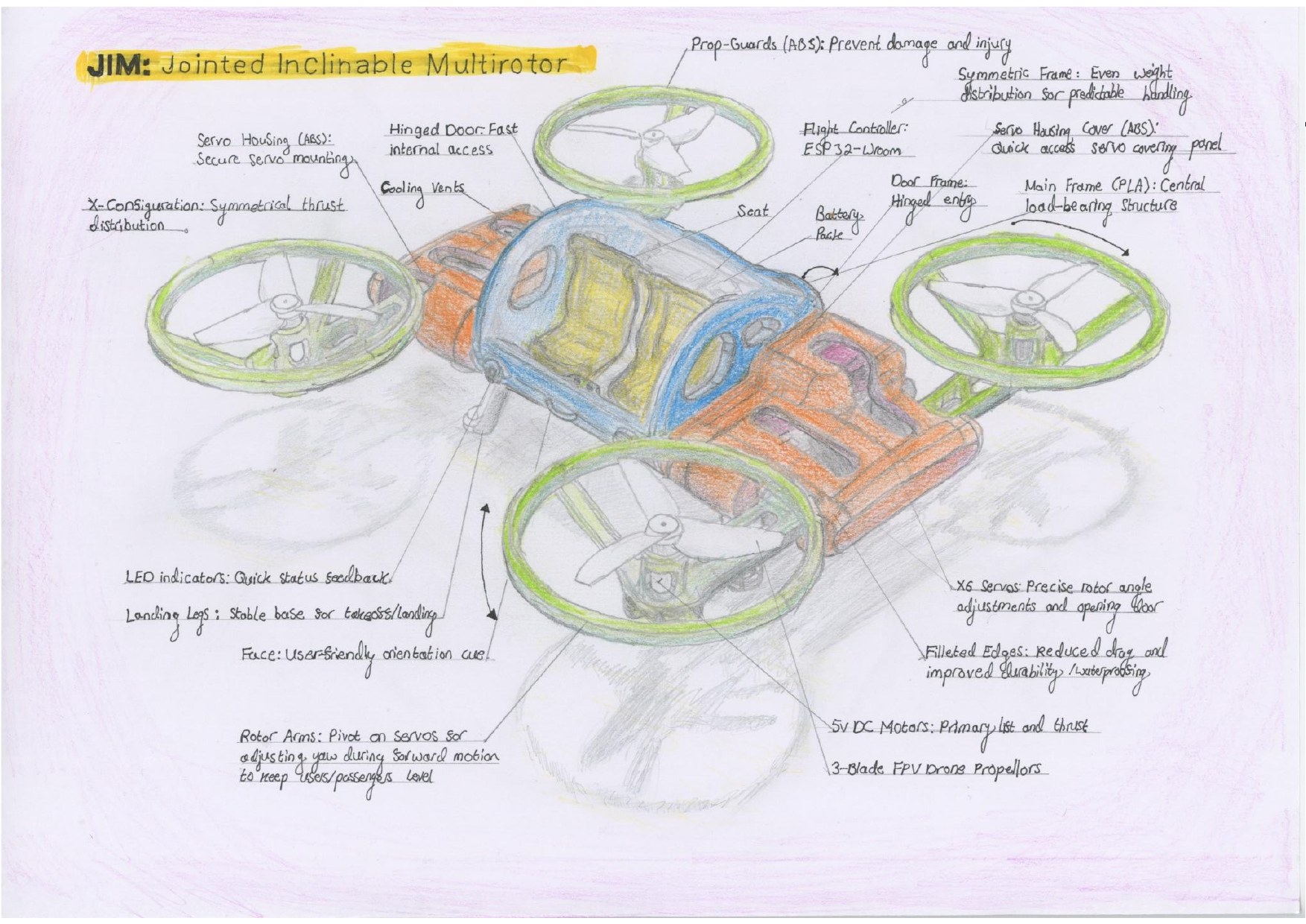

JIM engineering assessment, page 11

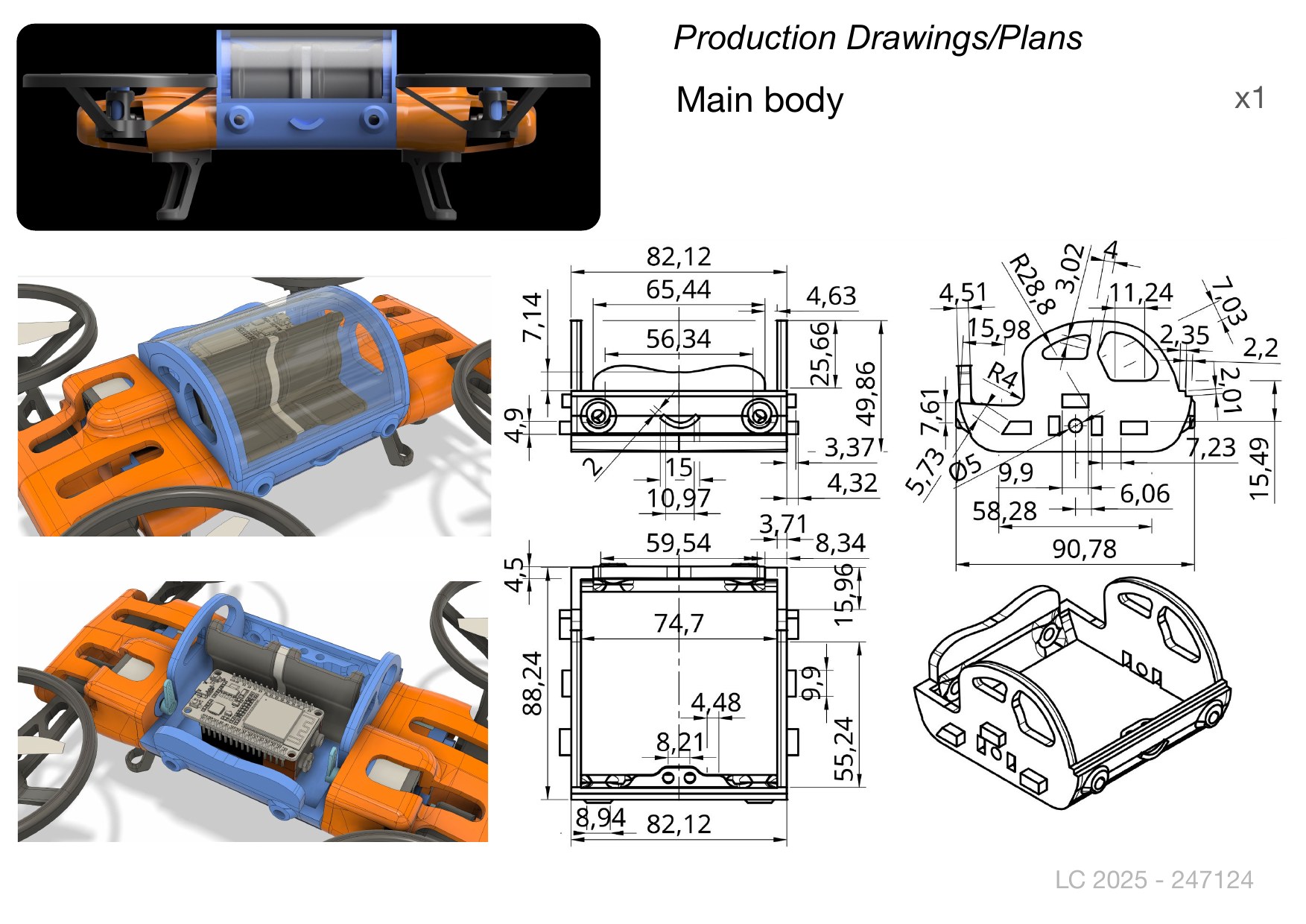

JIM engineering assessment, page 12: production drawings begin

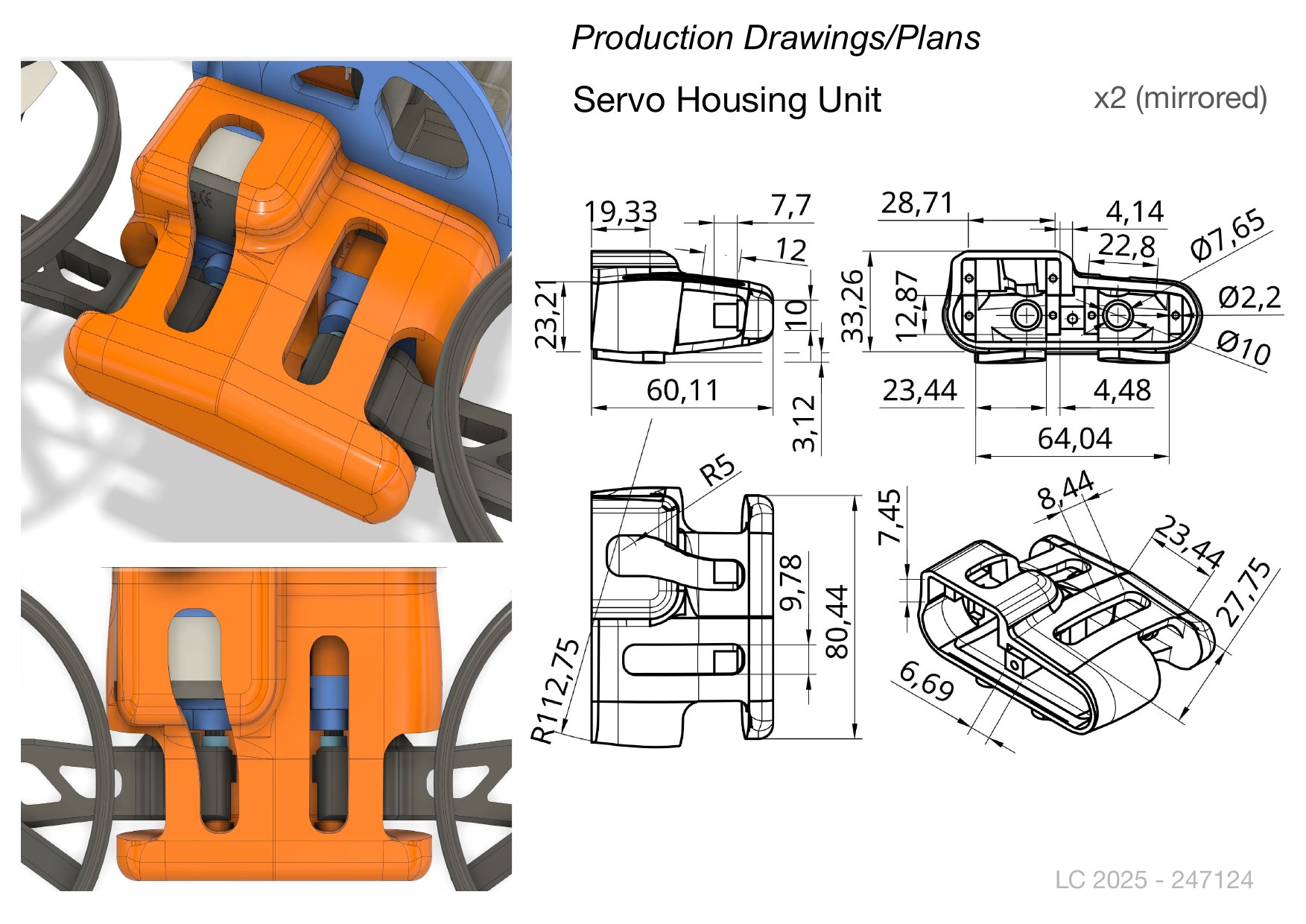

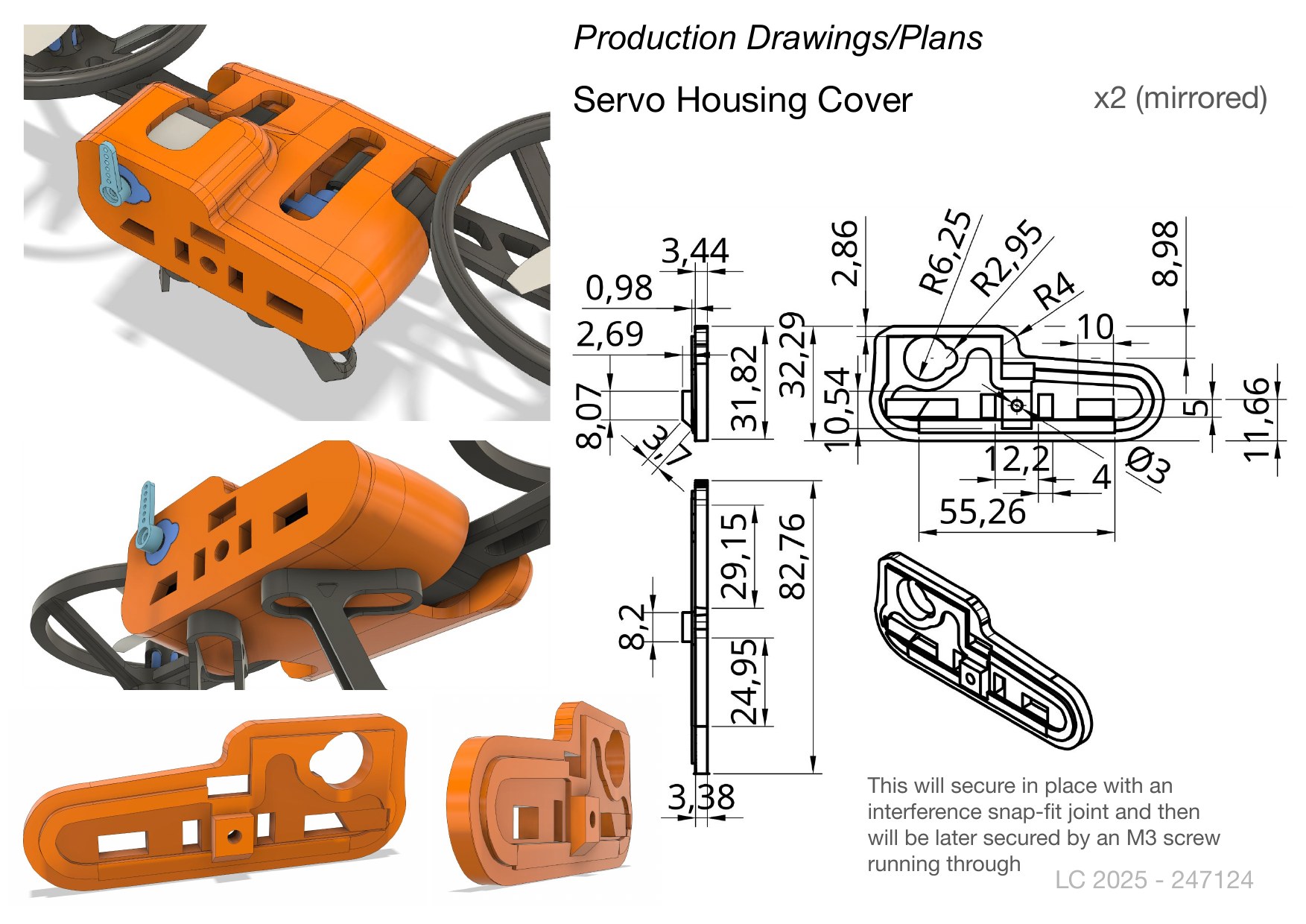

JIM engineering assessment, page 13
JIM engineering assessment, page 14

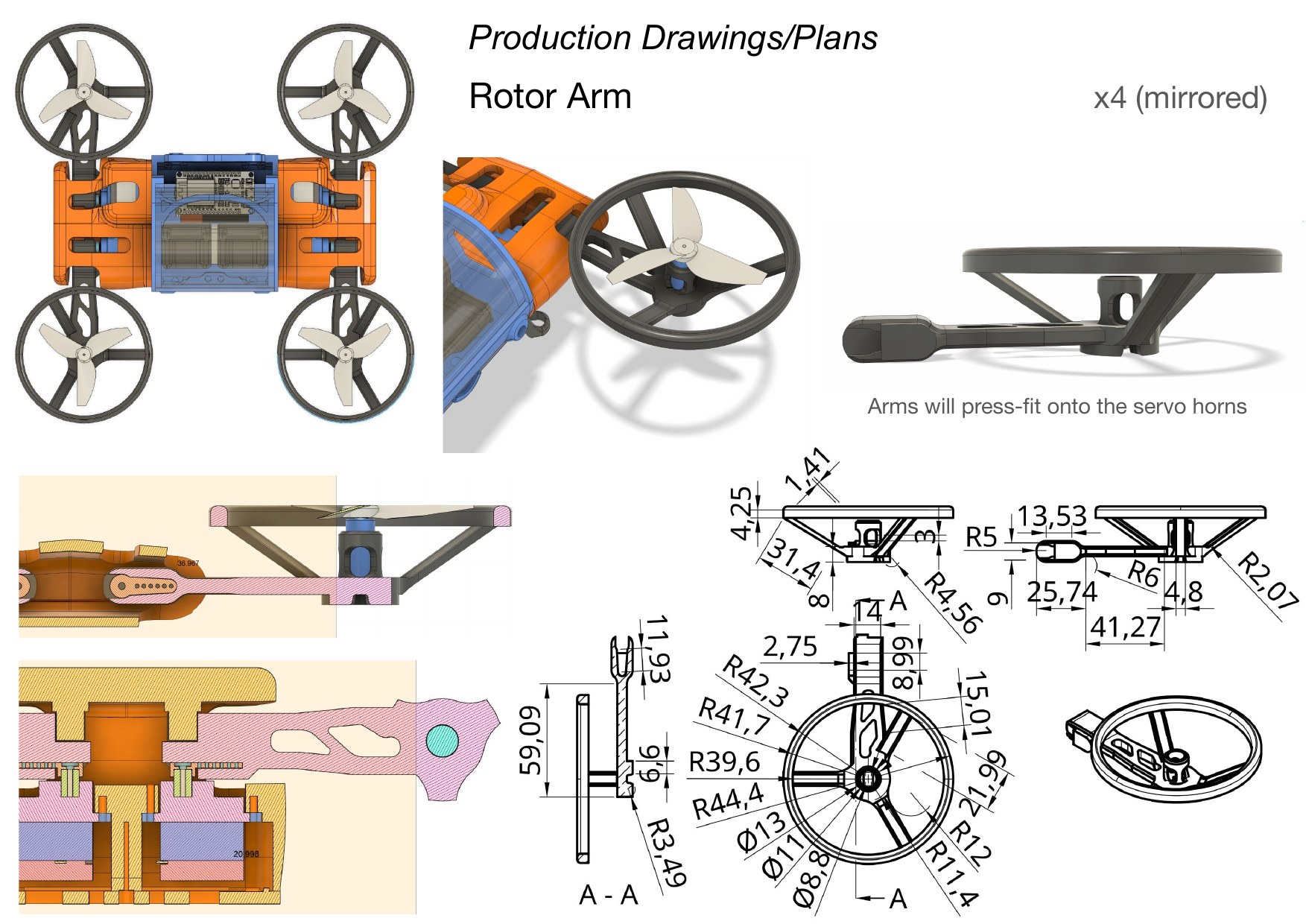

JIM engineering assessment, page 15

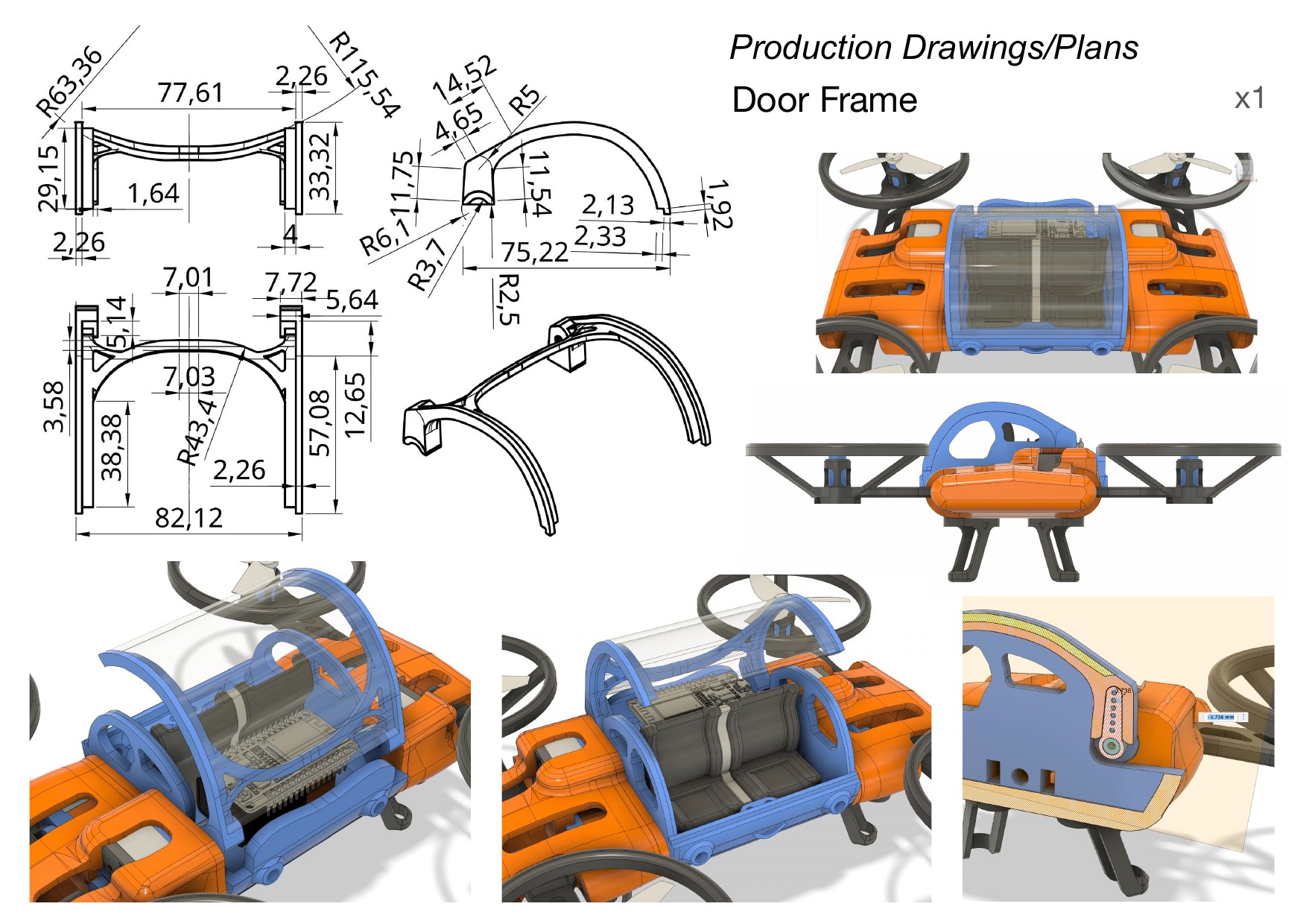

JIM engineering assessment, page 16

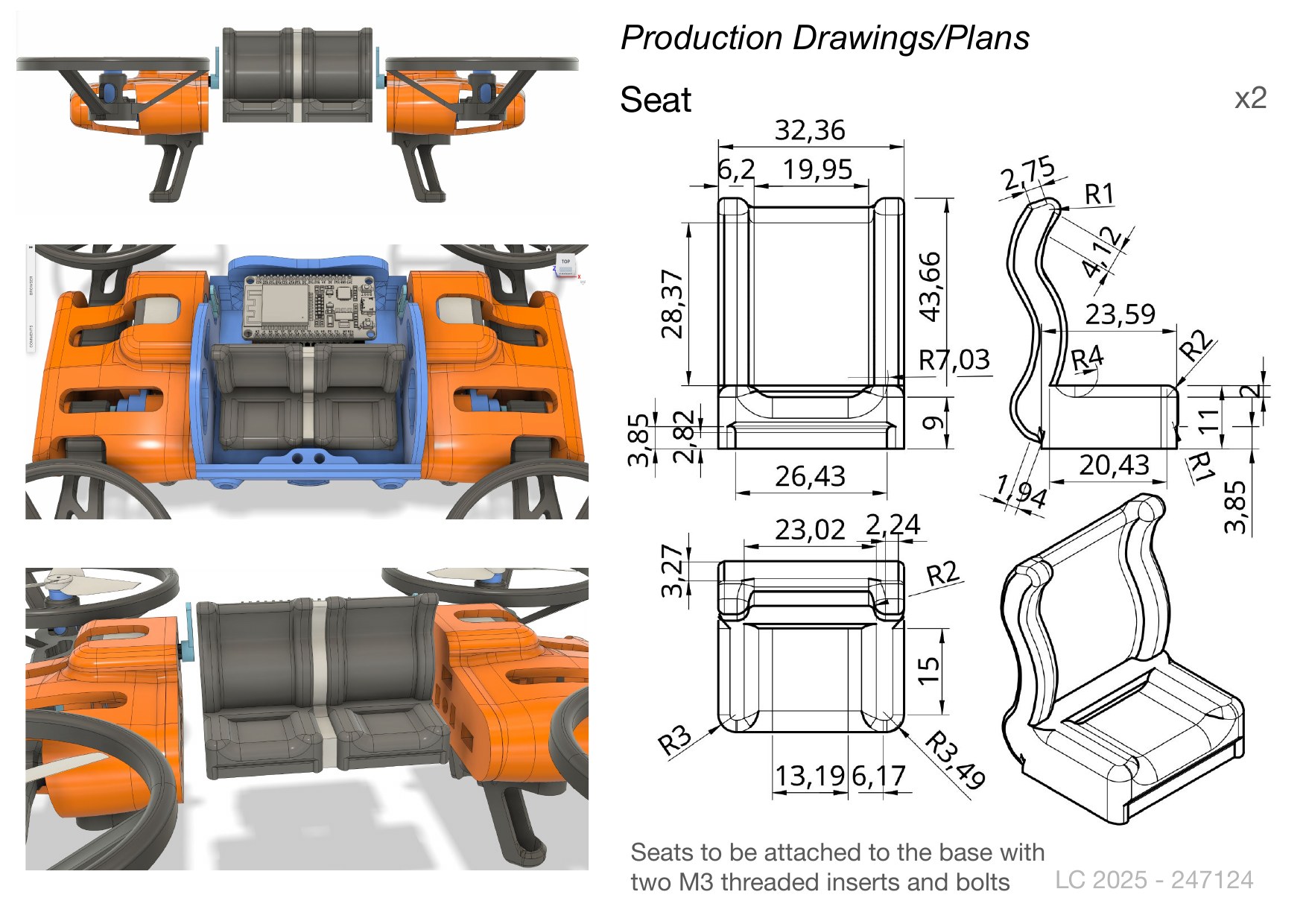

JIM engineering assessment, page 17

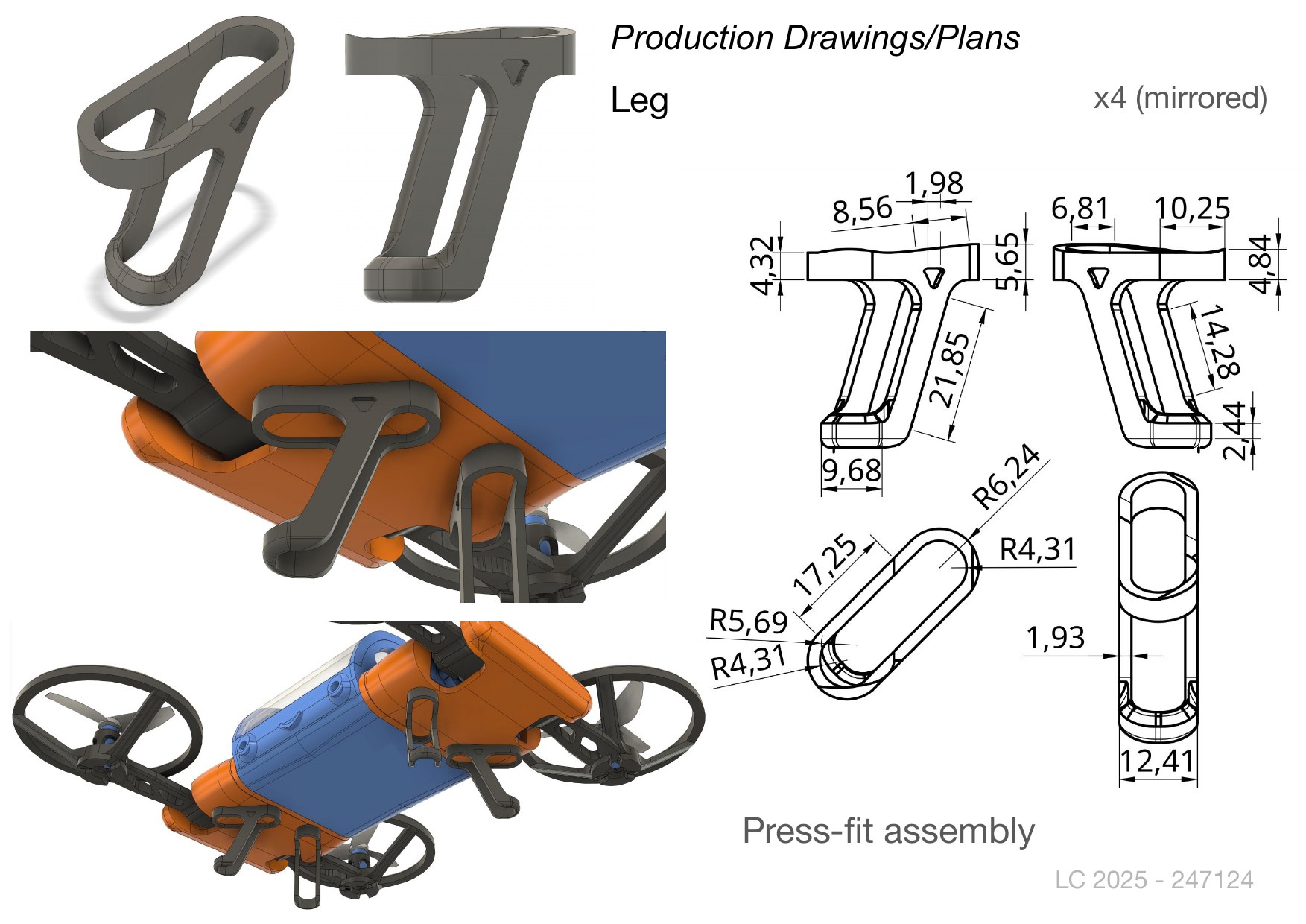

JIM engineering assessment, page 18

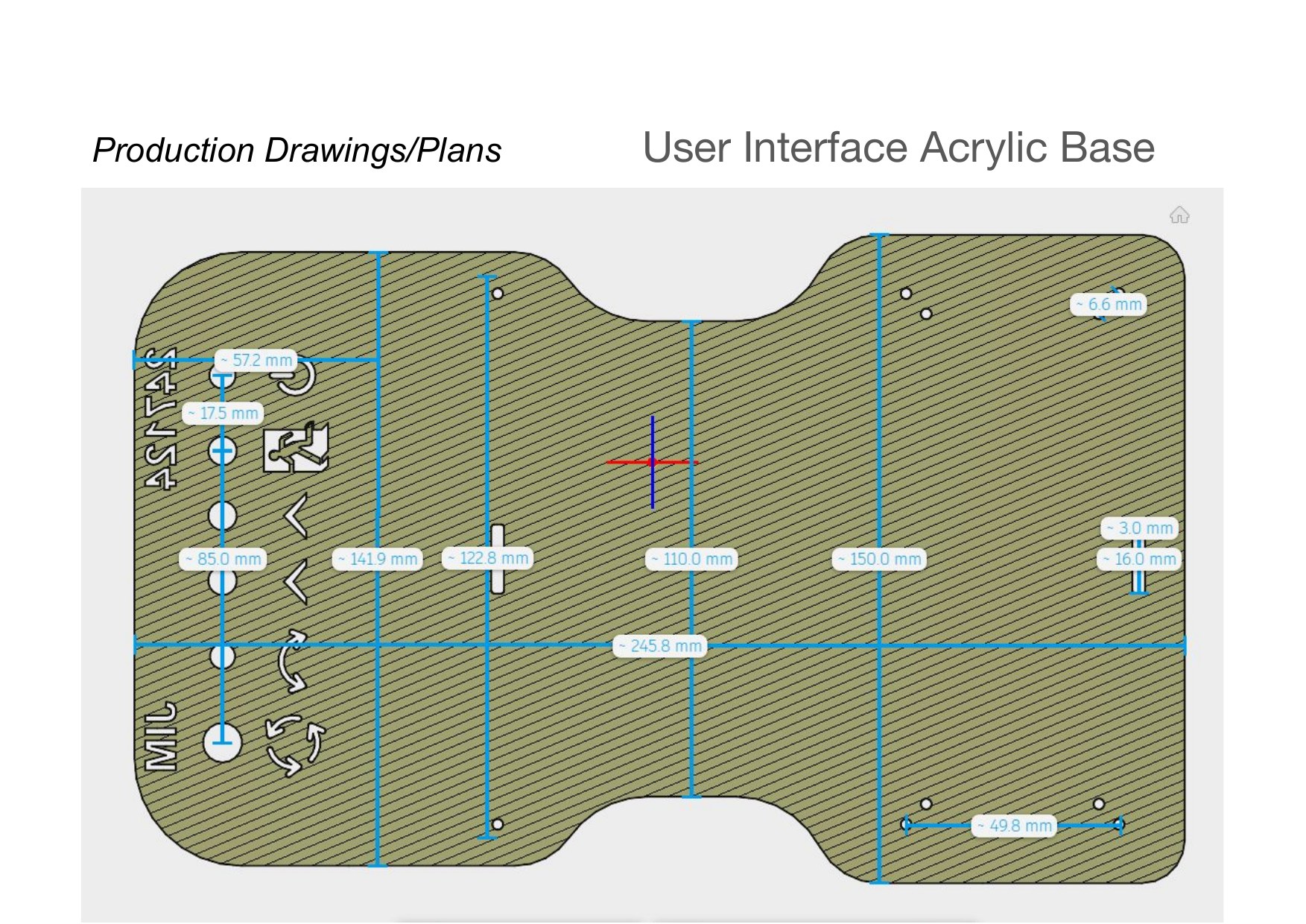

JIM engineering assessment, page 19

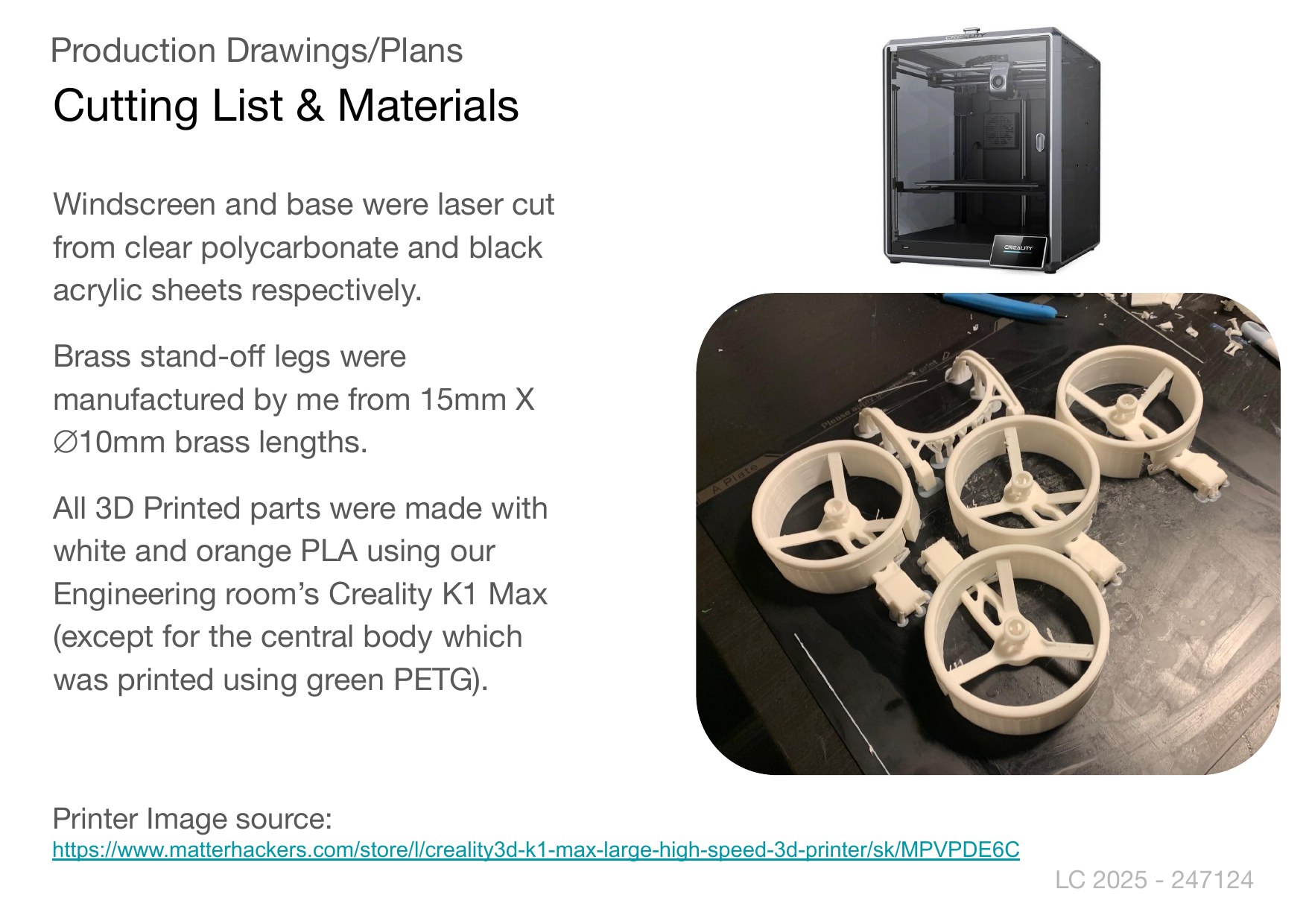

JIM engineering assessment, page 20

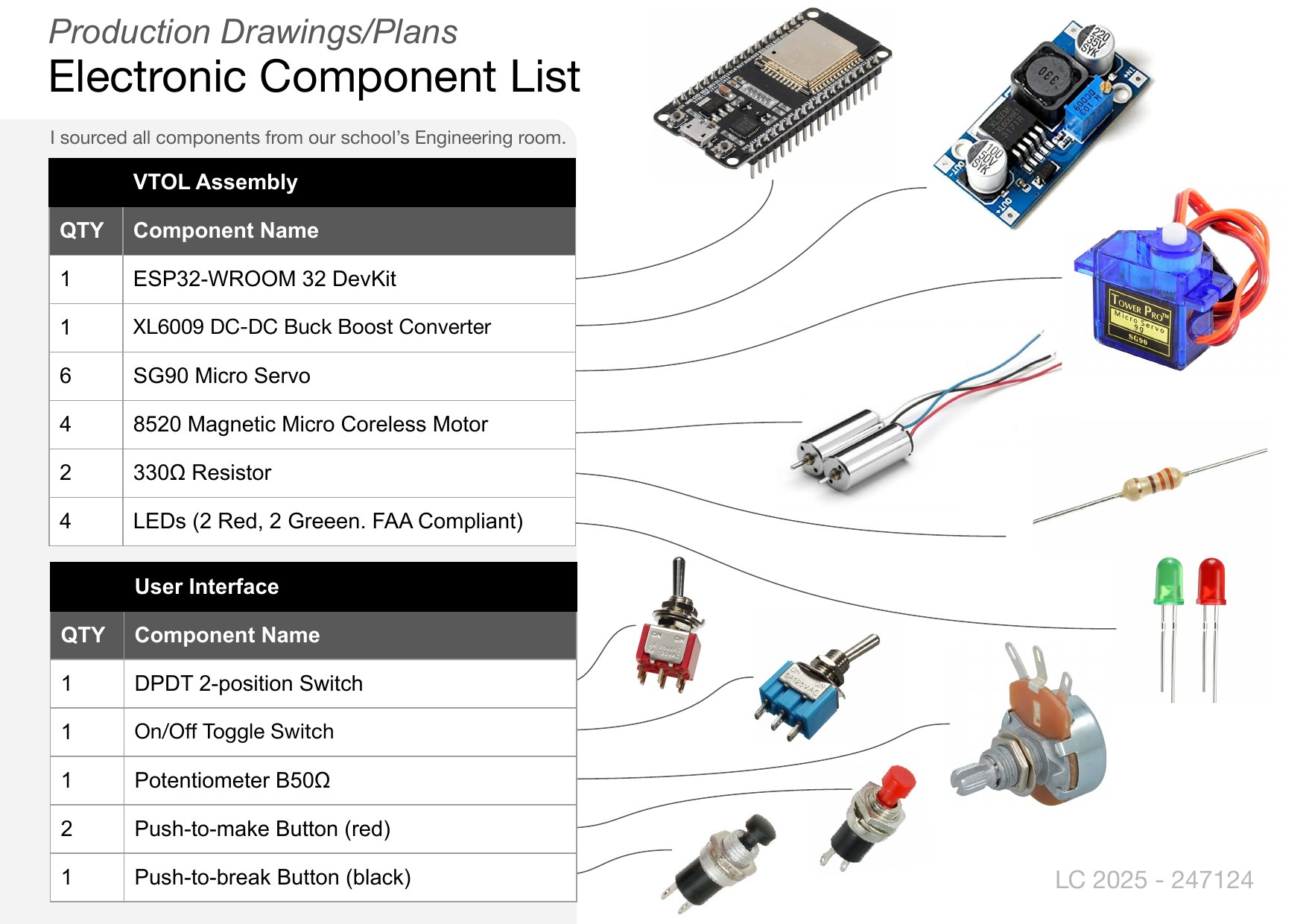

JIM engineering assessment, page 21

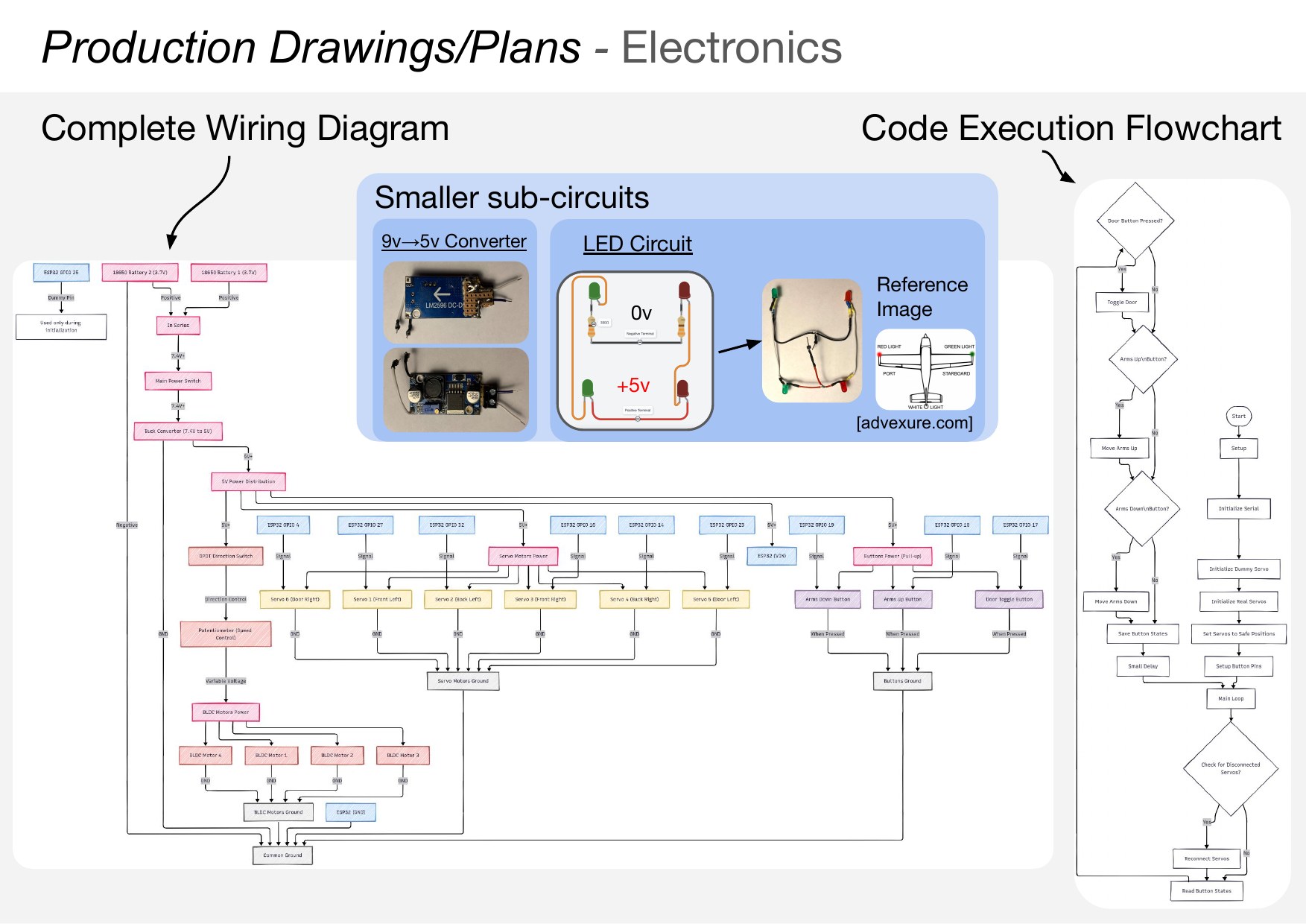

JIM engineering assessment, page 22

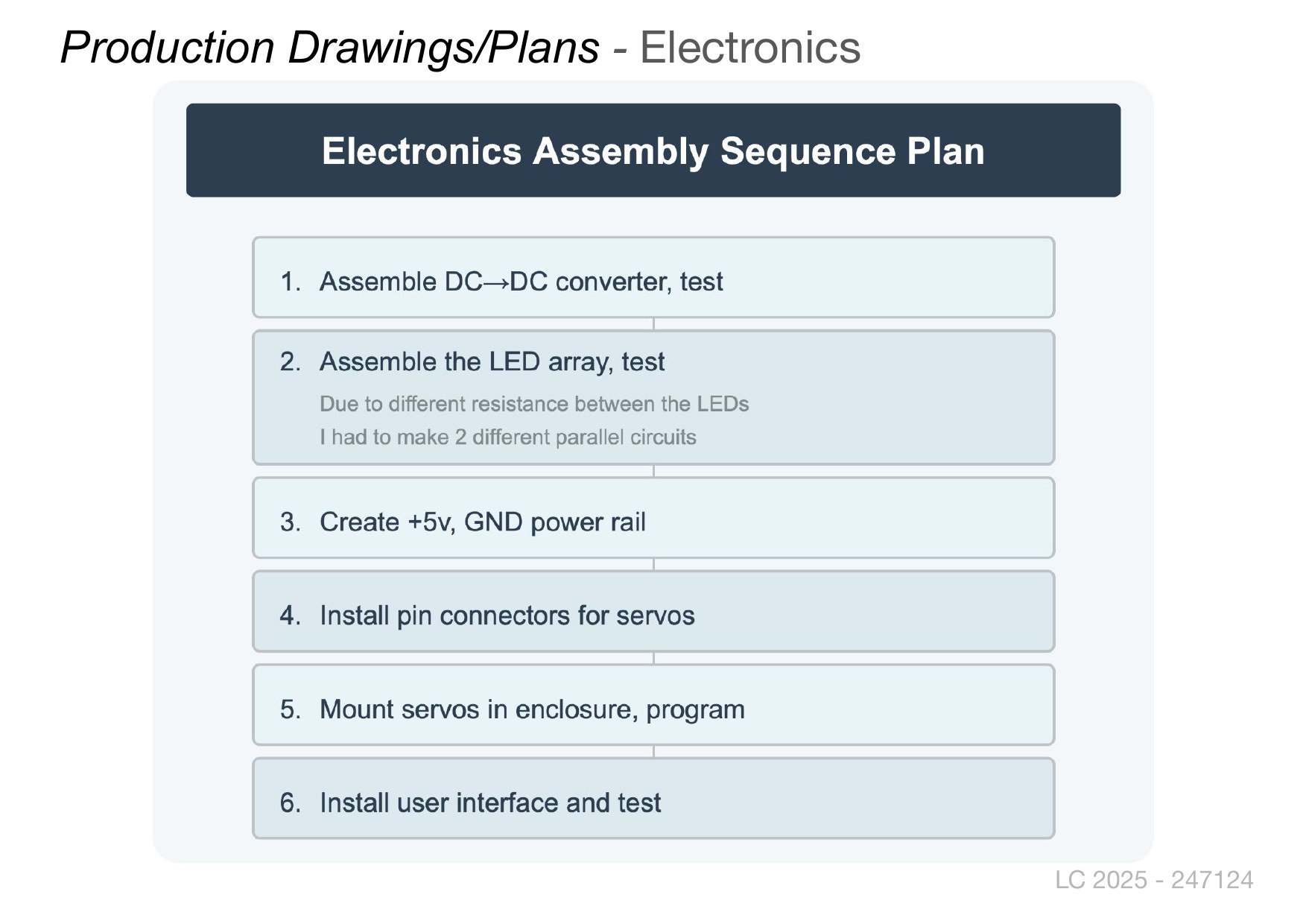

JIM engineering assessment, page 23

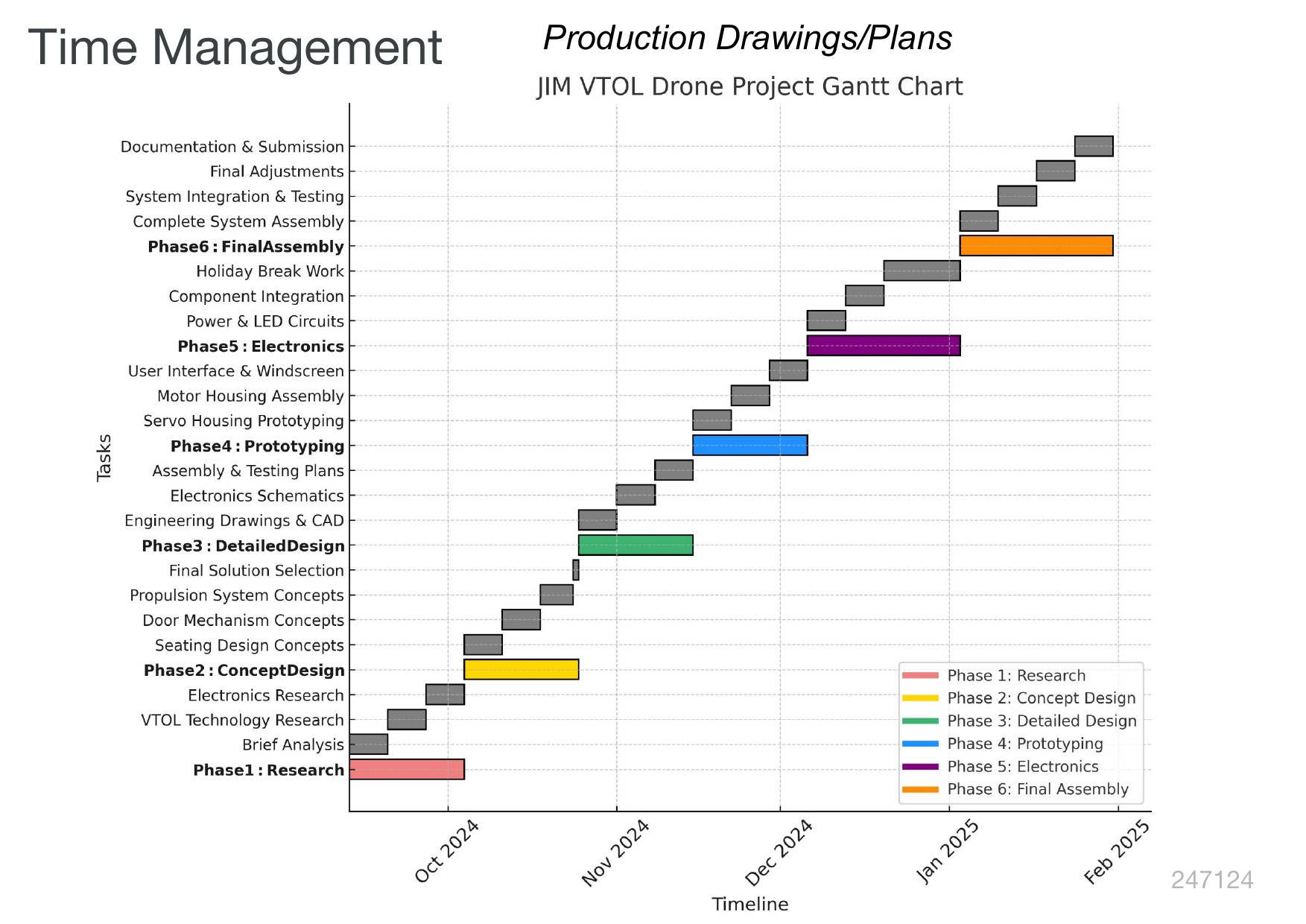

JIM engineering assessment, page 24

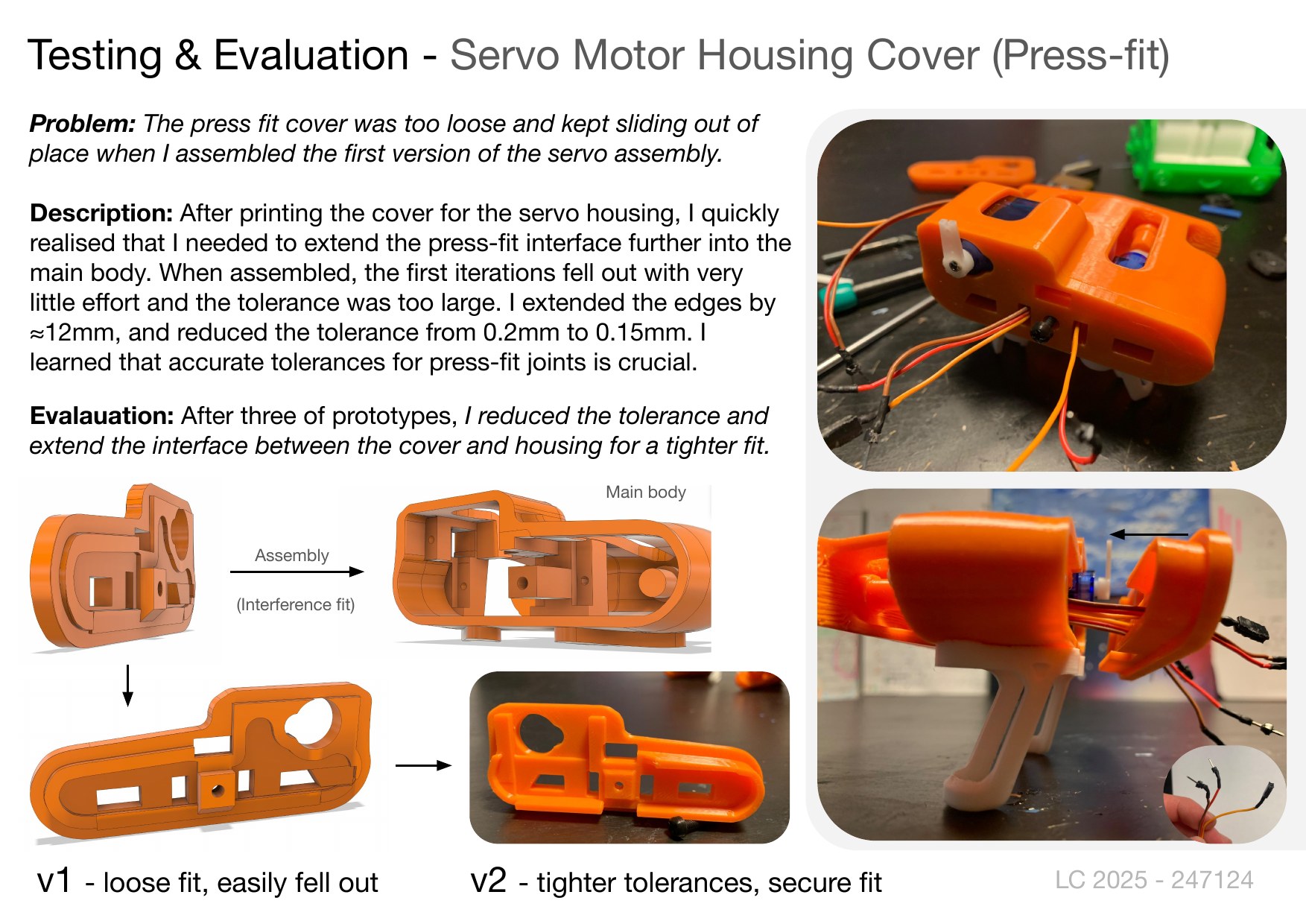

JIM engineering assessment, page 25

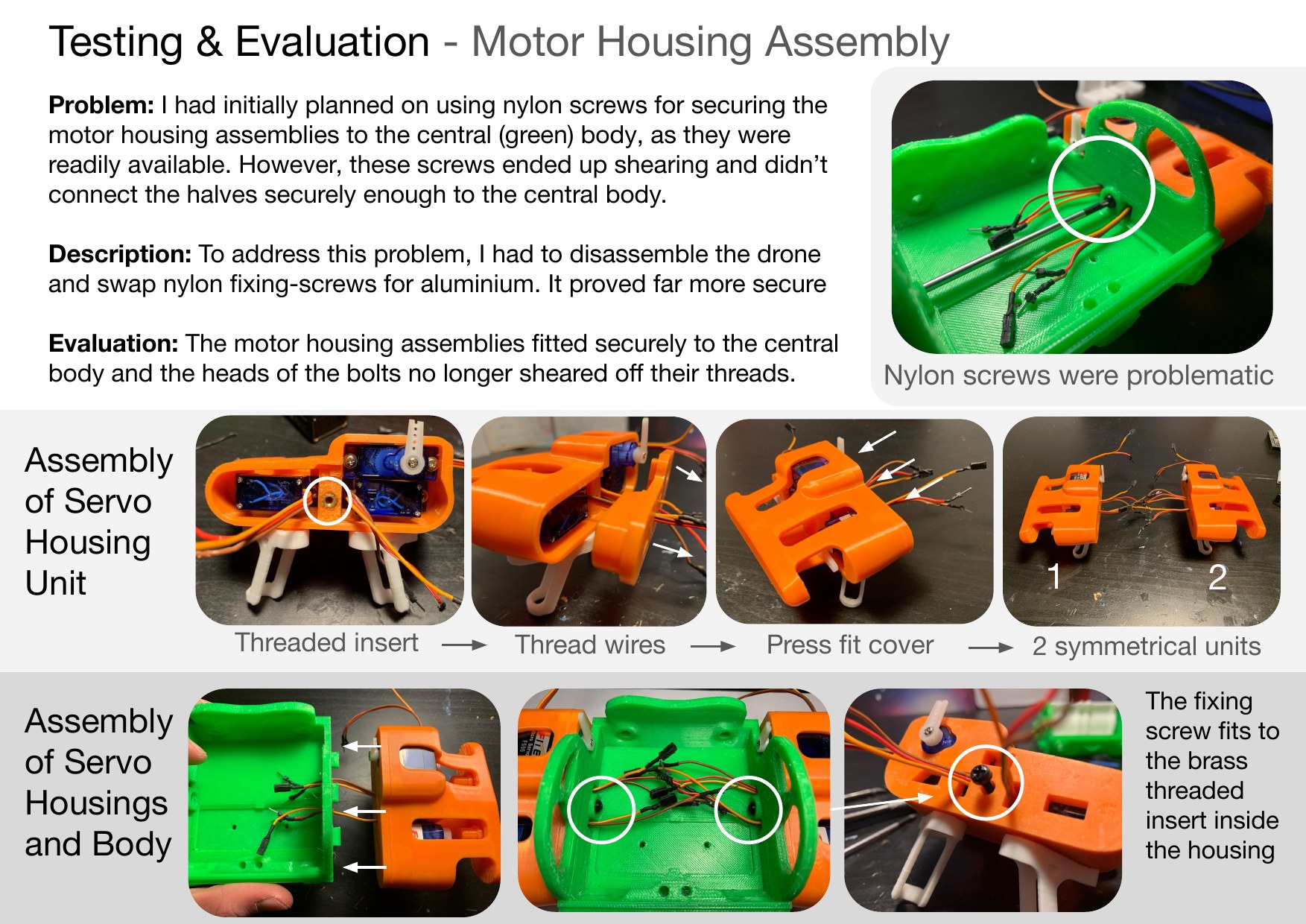

JIM engineering assessment, page 26

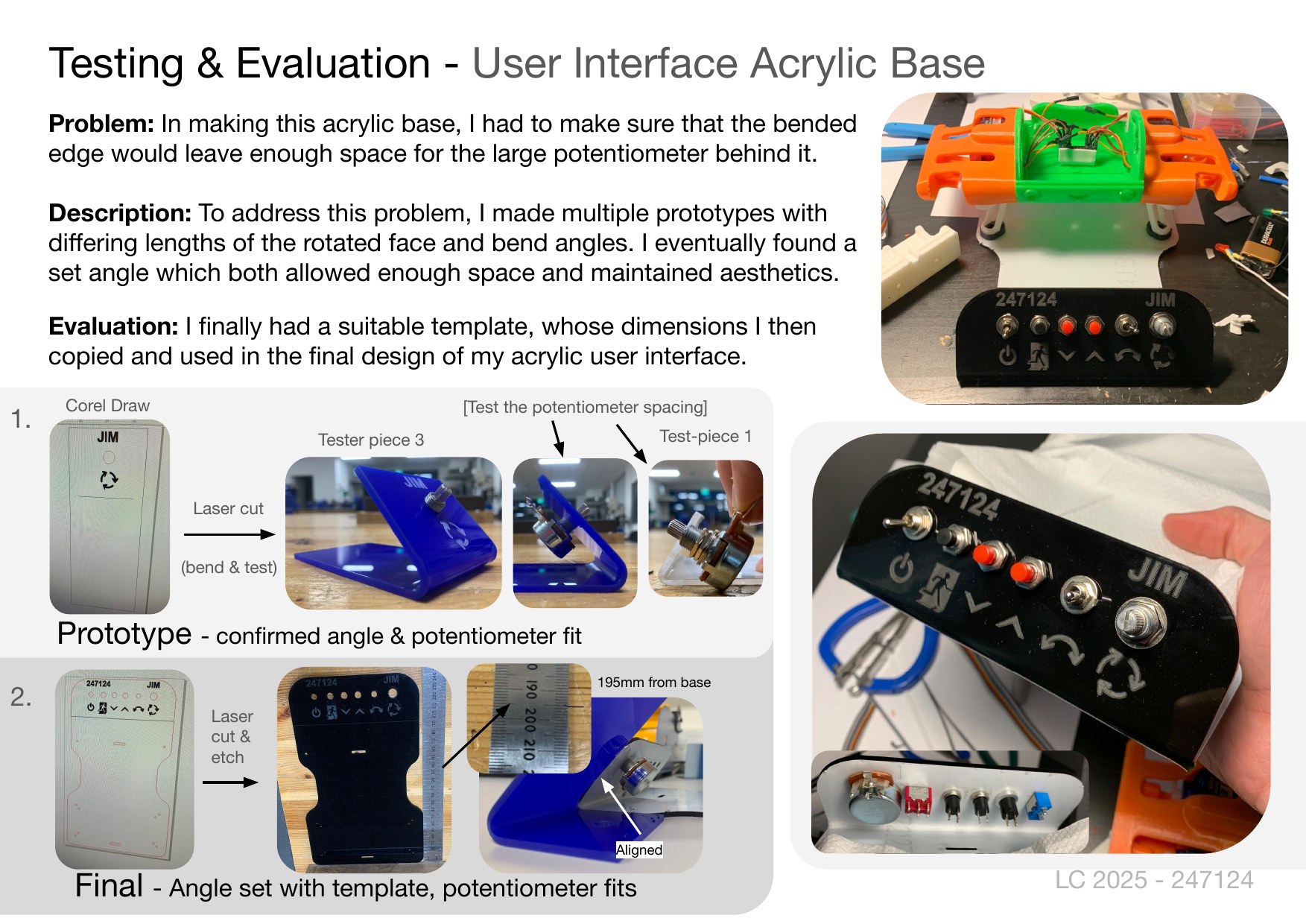

JIM engineering assessment, page 27

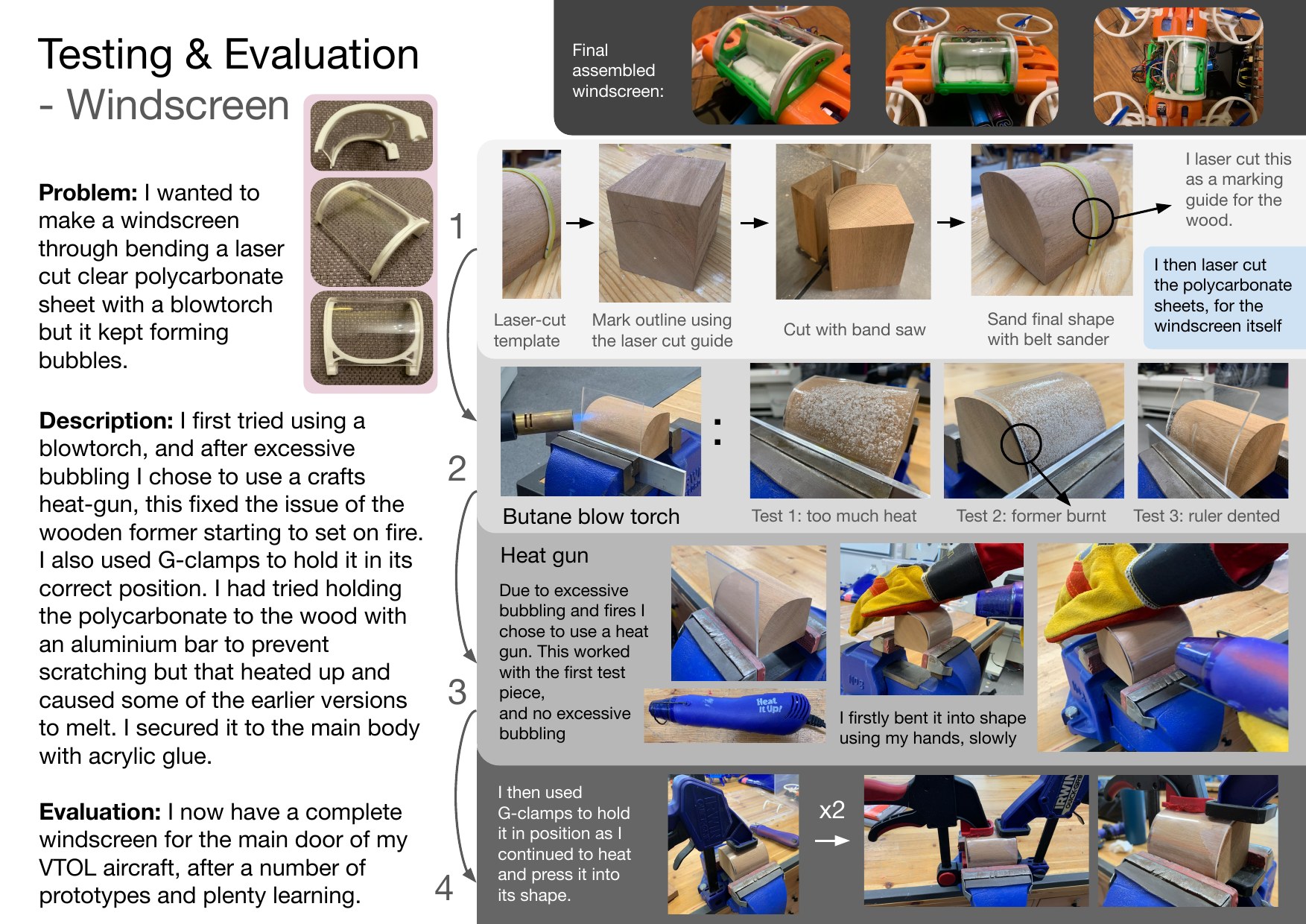

JIM engineering assessment, page 28: windscreen testing

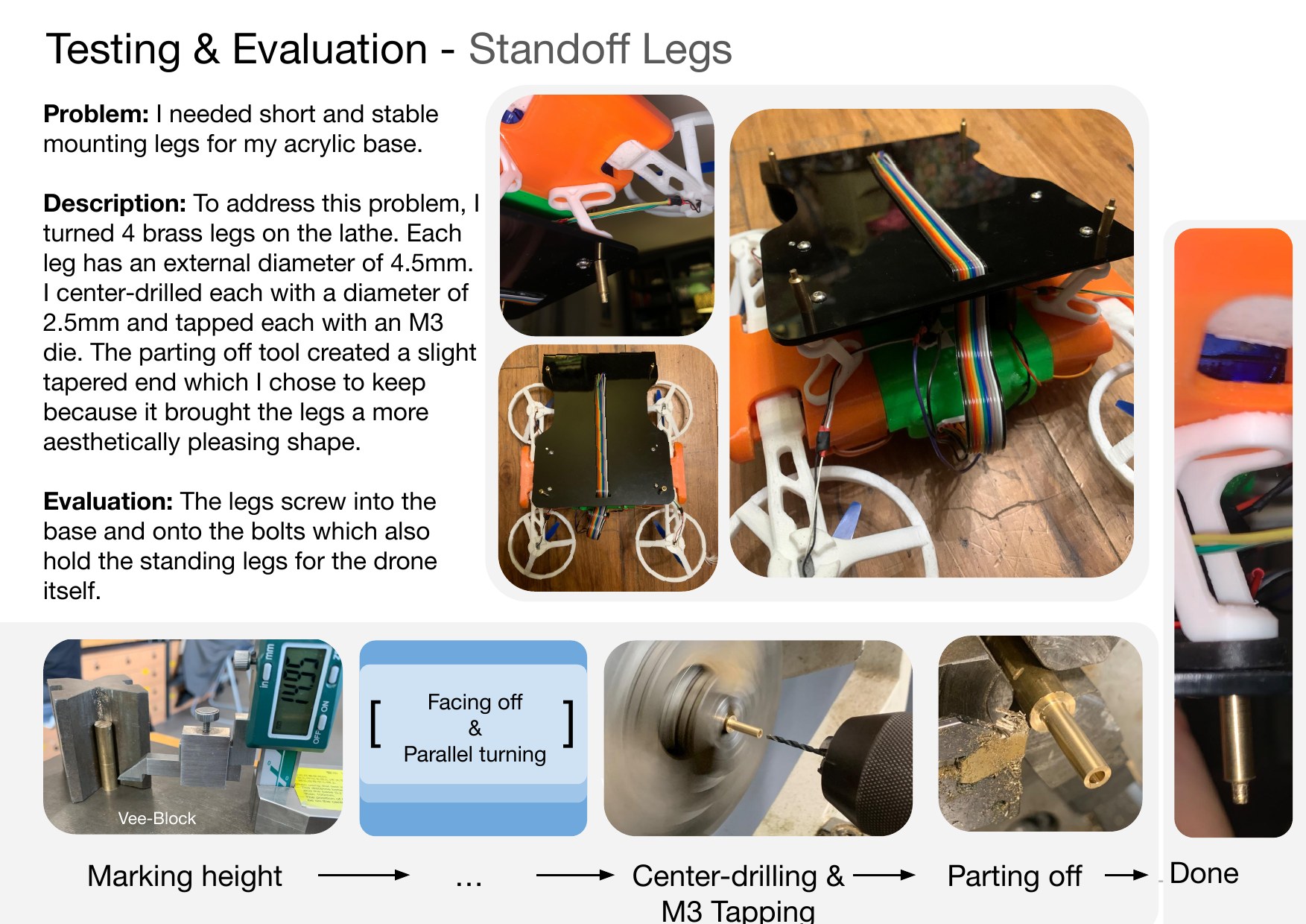

JIM engineering assessment, page 29

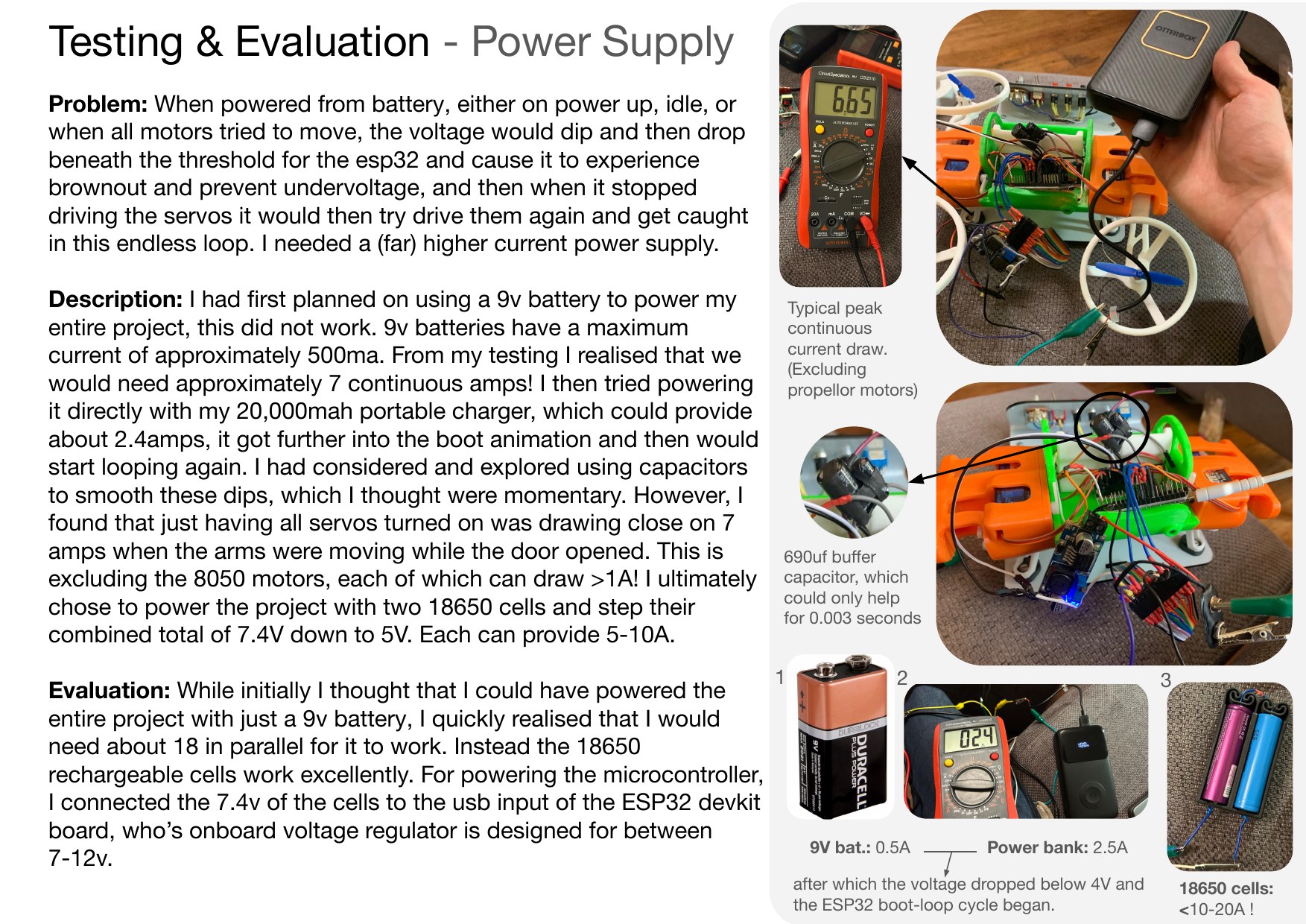

JIM engineering assessment, page 30

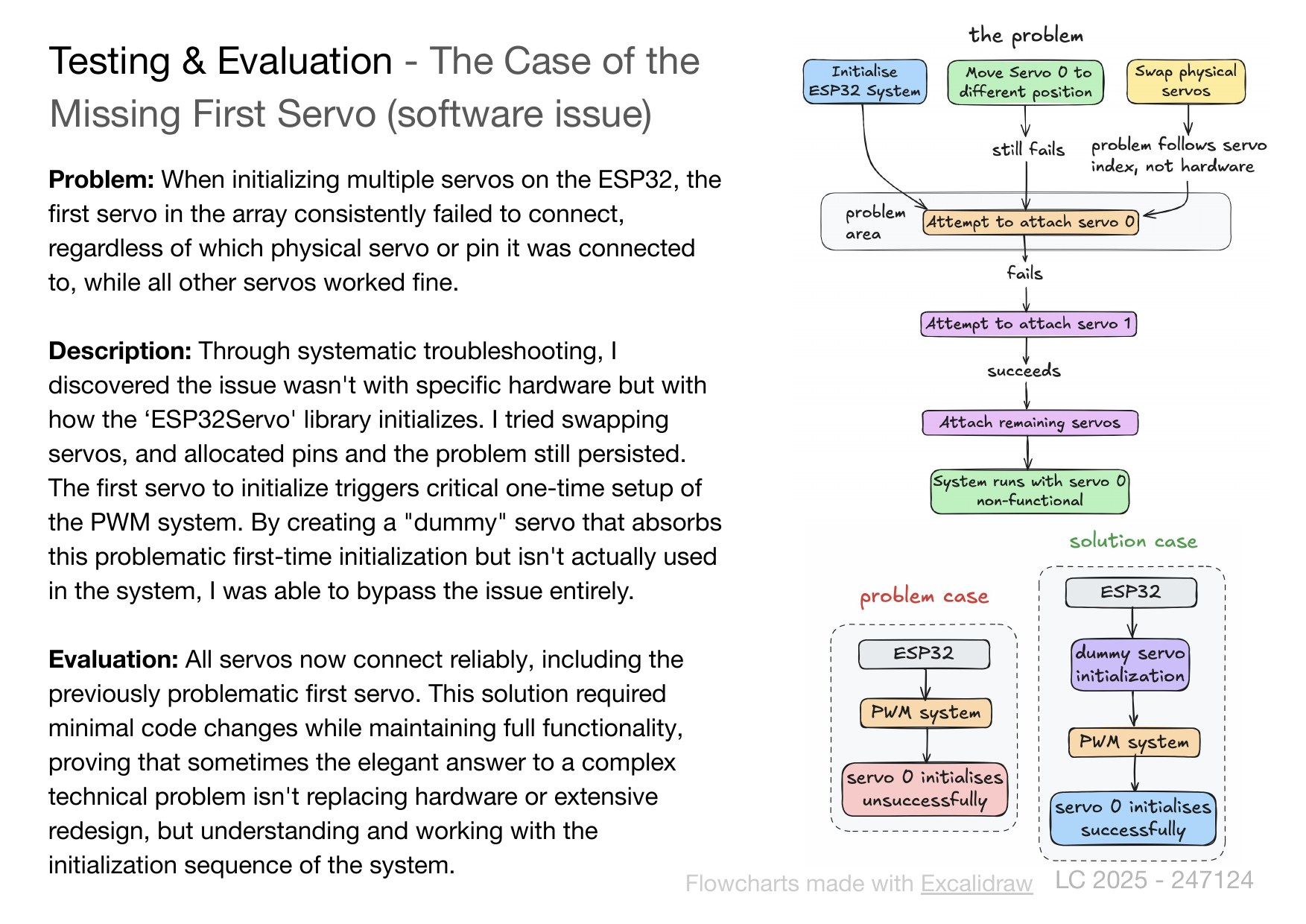

JIM engineering assessment, page 31

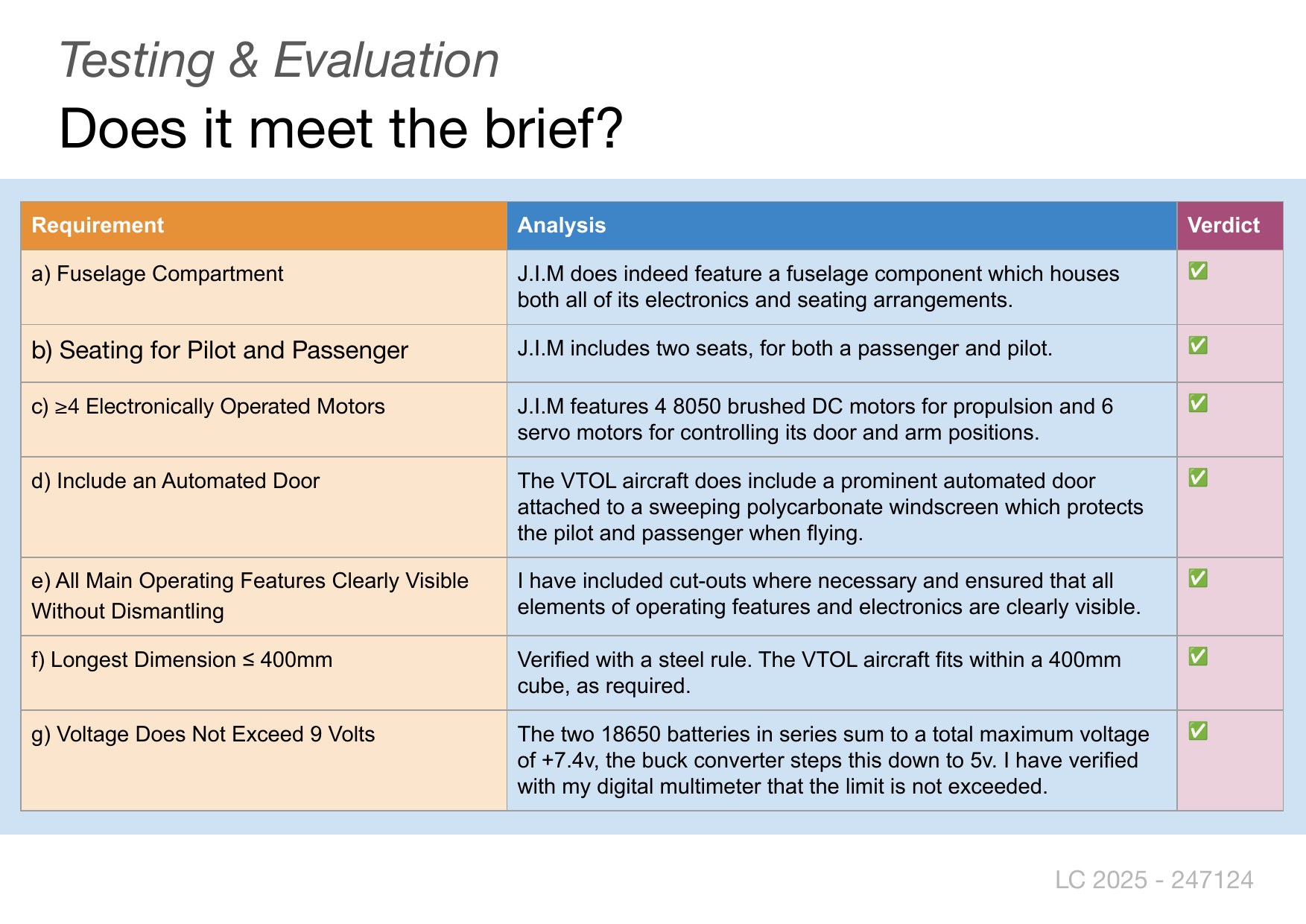

JIM engineering assessment, page 32

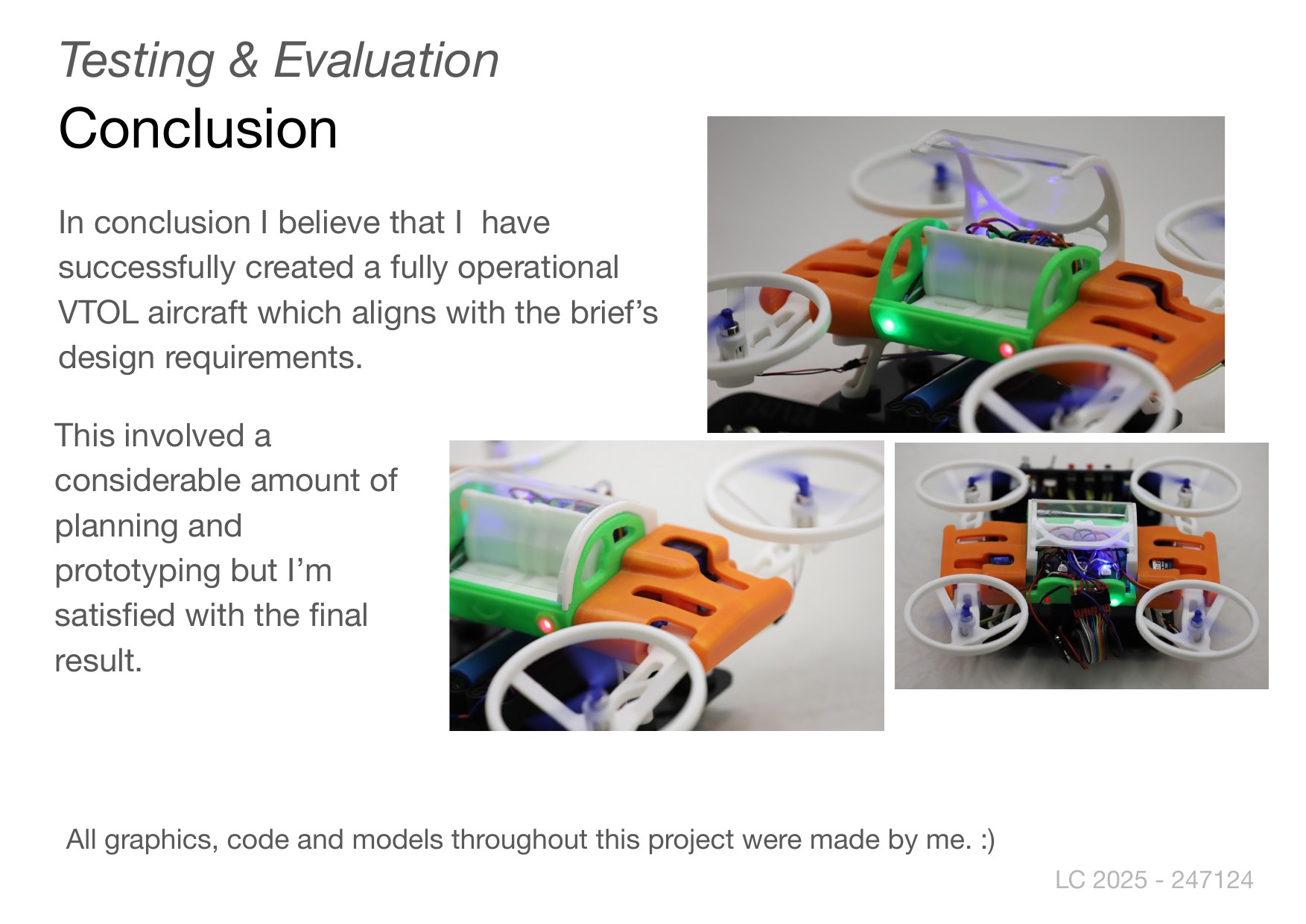

JIM engineering assessment, page 33

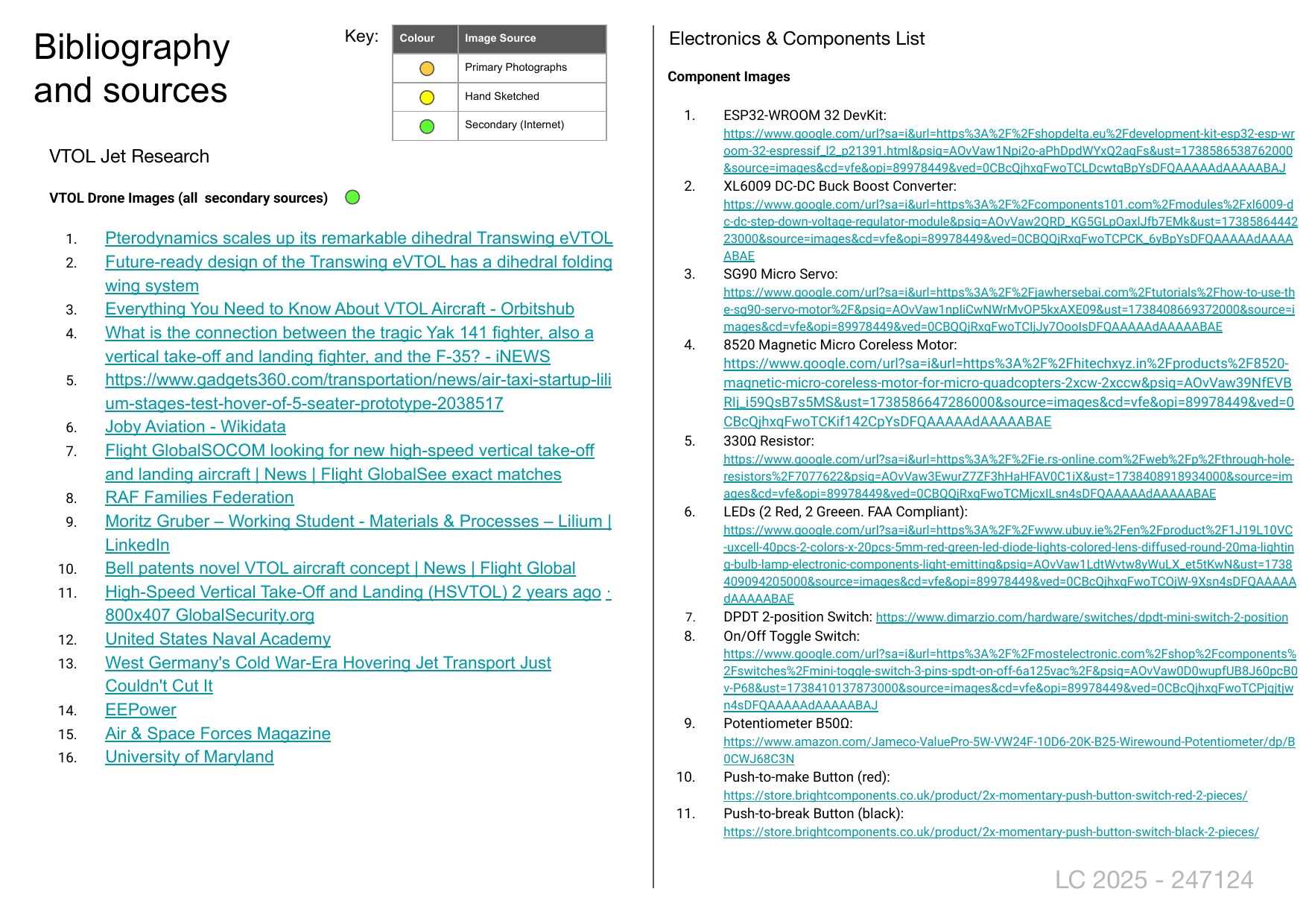

JIM engineering assessment, page 34

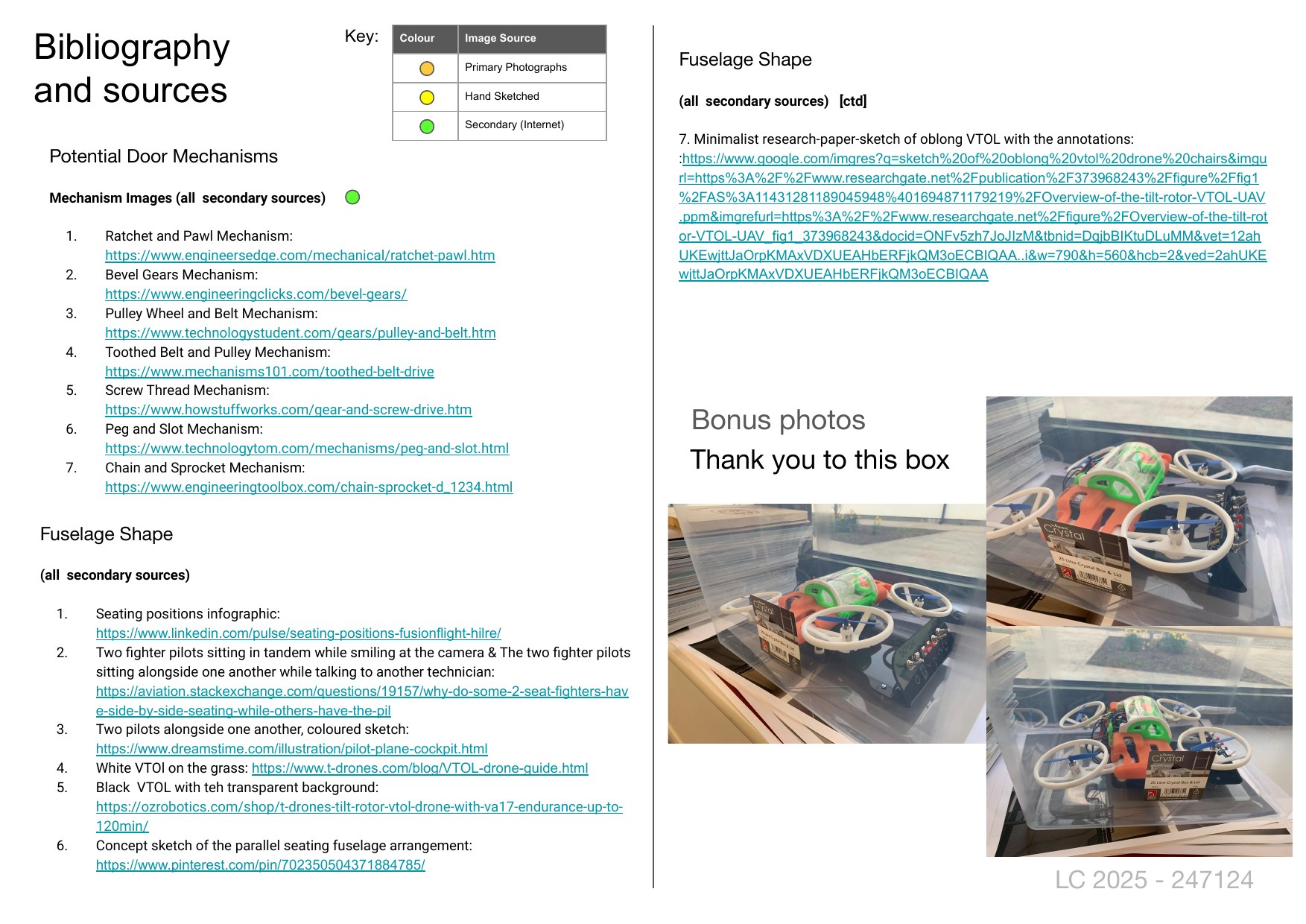

JIM engineering assessment, page 35

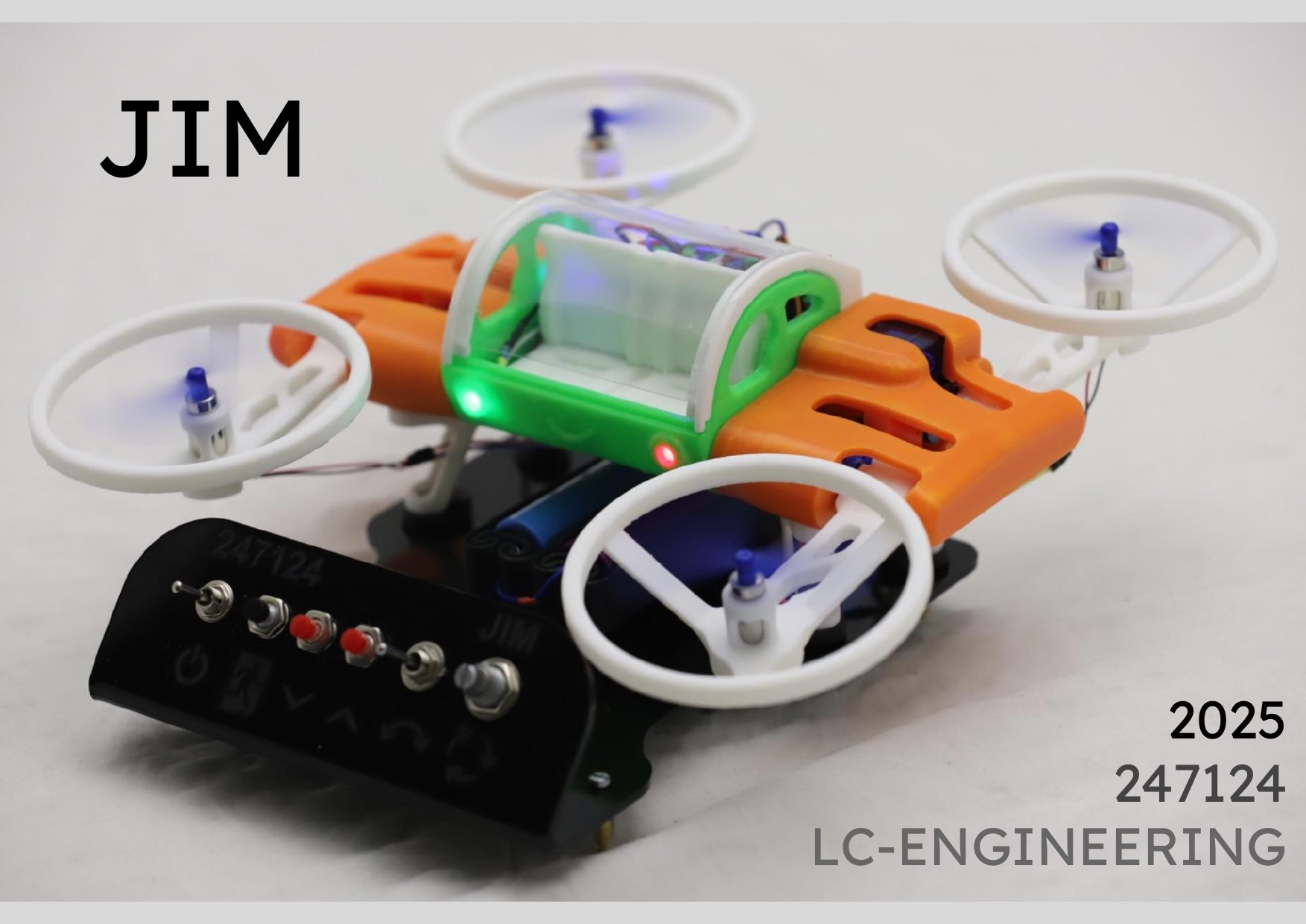

JIM engineering assessment, page 36

download original PDF
